MICROCHIP 24AA16T-I/OT EEPROM, 16 Kbit, 8 BLK 256 x 8位, 400 kHz, I2C, SOT-23, 5 引脚
The is a 16kB I²C serial Electrically Erasable Programmable Read-Only Memory EEPROM organized as eight blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V with standby and active currents of only 1µA and 1mA, respectively. The 24XX16 also has a page write capability for up to 16 bytes of data.
频率 0.1 MHz
电源电压DC 5.00 V, 5.50 V max
工作电压 1.7V ~ 5.5V
供电电流 3 mA
针脚数 5
时钟频率 400 kHz
存取时间 900 ns
内存容量 2000 B
输入电容 10 pF
上升时间 1000 ns
下降时间 300 ns
存取时间Max 3500 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.7 V
安装方式 Surface Mount
引脚数 5

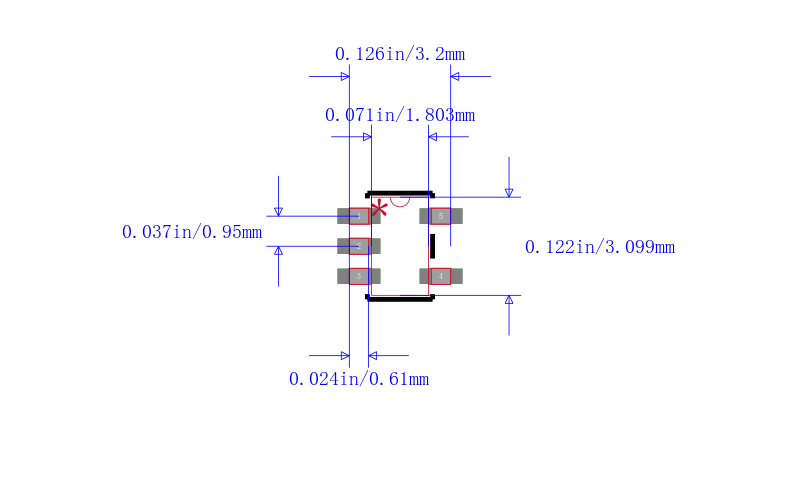

封装 SOT-23-5
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 消费电子产品, 工业, 车用, Communications & Networking, Industrial, 通信与网络, Consumer Electronics, 计算机和计算机周边, Automotive, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
24AA16T-I/OT Microchip 微芯 | 当前型号 | 当前型号 |
24LC16BT-I/OT 微芯 | 类似代替 | 24AA16T-I/OT和24LC16BT-I/OT的区别 |
24LC16BT-I/OTG 微芯 | 类似代替 | 24AA16T-I/OT和24LC16BT-I/OTG的区别 |
24AA16T-I/OTG 微芯 | 类似代替 | 24AA16T-I/OT和24AA16T-I/OTG的区别 |
