24AA32A-I/SN

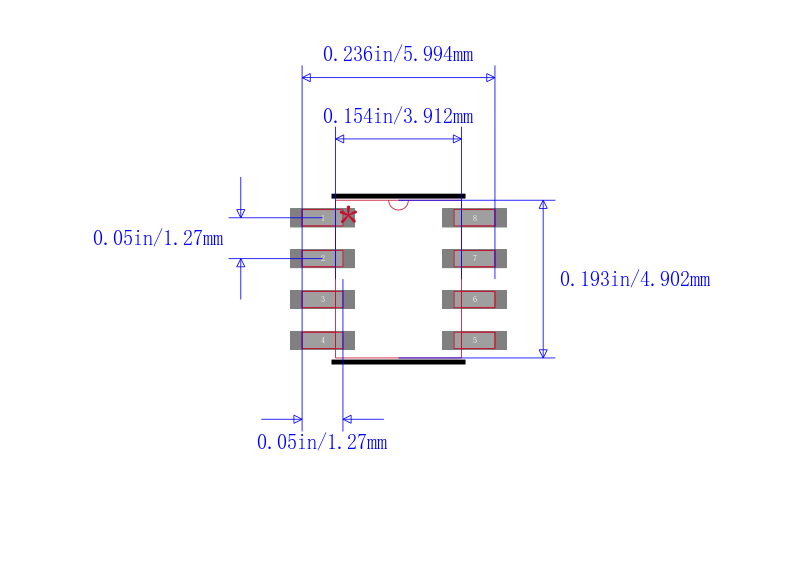

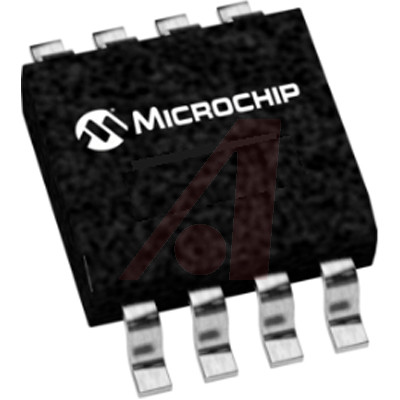

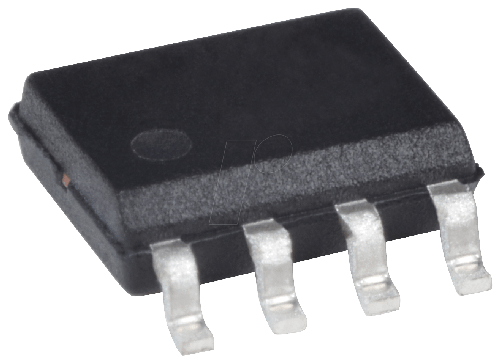

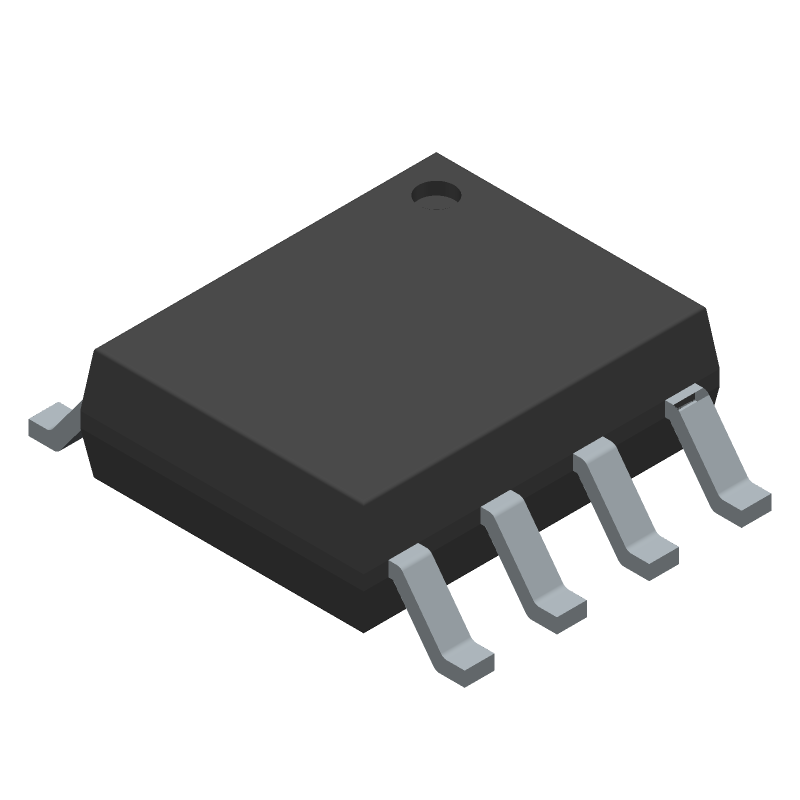

MICROCHIP  24AA32A-I/SN  芯片, 存储器, EEPROM, 32KB, 串行口 400KHZ SOIC-8

The is a 32kB I²C serial Electrically Erasable Programmable Read-Only Memory EEPROM organized as a single block of 4K x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1mA and 1mA respectively. It has been developed for advanced, low-power applications such as personal communications or data acquisition. The 24XX32A also has a page write capability for up to 32 bytes of data. Functional address lines allow up to eight devices on the same bus, for up to 256kB address space.

.

Low-power CMOS technology

.

2-wire serial interface I²C™ compatible

.

Schmitt trigger inputs for noise suppression

.

Output slope control to eliminate ground bounce

.

100 and 400kHz Clock compatibility

.

Page write time 5ms maximum

.

Self-timed erase/write cycle

.

32-byte page write buffer

.

Hardware write-protect

.

ESD protection >4000V

.

More than 1million erase/write cycles

.

Data retention >200 years
