24LC04B/P

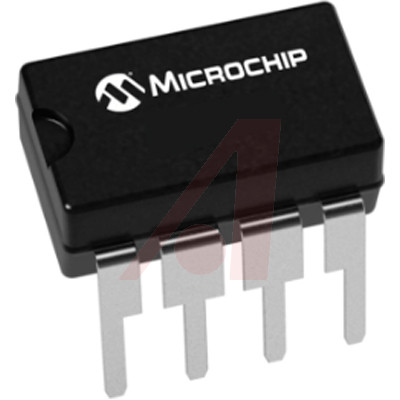

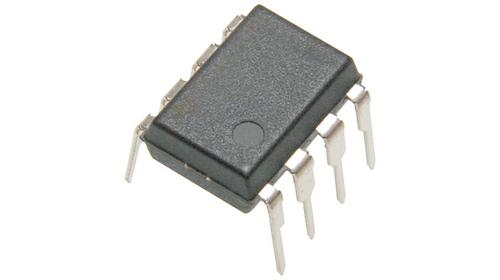

MICROCHIP  24LC04B/P  EEPROM, AEC-Q100, 4 Kbit, 2 BLK 256K x 8位, 400 kHz, I2C, DIP, 8 引脚

The is a 2kB I²C™ serial Electrically Erasable Programmable Read-Only Memory EEPROM organized as two blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with standby and active currents of only 1µA and 1mA, respectively. The 24XX04 also has a page write capability for up to 16 bytes of data.

.

Single supply with operation down to 2.5V

.

Low-power CMOS technology

.

2-wire serial interface I²C™ compatible

.

Schmitt trigger inputs for noise suppression

.

Output slope control to eliminate ground bounce

.

100 and 400kHz Clock compatibility

.

Page write time 3ms, typical

.

Self-timed erase/write cycle

.

16-byte Page write buffer

.

Hardware write-protect

.

ESD protection >4000V

.

More than 1million erase/write cycles

.

Data retention >200 years
