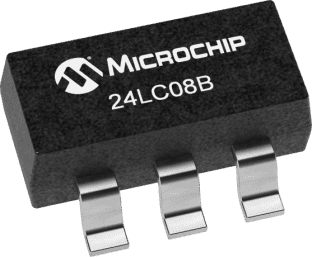

24LC08BT-I/OT

MICROCHIP  24LC08BT-I/OT  EEPROM, AEC-Q100, 8 Kbit, 4 BLK 256K x 8位, 400 kHz, I2C, SOT-23, 5 引脚

The is a 8kB I²C™ serial Electrically Erasable Programmable Read-Only Memory EEPROM organized as four blocks of 256 x 8-bit memory with a 2-wire serial interface. Low voltage design permits operation down to 1.8V, with standby and active currents of only 1µA and 1mA, respectively. The 24XX08 also has a page write capability for up to 16 bytes of data.

.

Single supply with operation down to 1.8V

.

Low-power CMOS technology

.

2-wire serial interface I²C™ compatible

.

Schmitt trigger inputs for noise suppression

.

Output slope control to eliminate ground bounce

.

100 and 400kHz Clock compatibility

.

Self-timed write cycle

.

Page write buffer for up to 16 bytes

.

2ms Typical write cycle time for page write

.

Hardware write-protect for entire memory

.

Can be operated as a serial ROM

.

ESD protection >4000V

.

1000000 Erase/write cycles

.

Data retention >200 years
