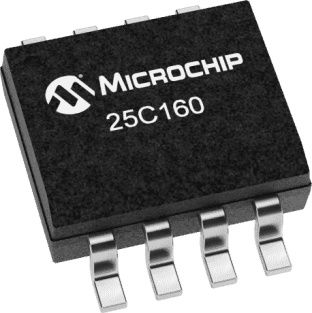

25C160-I/SN

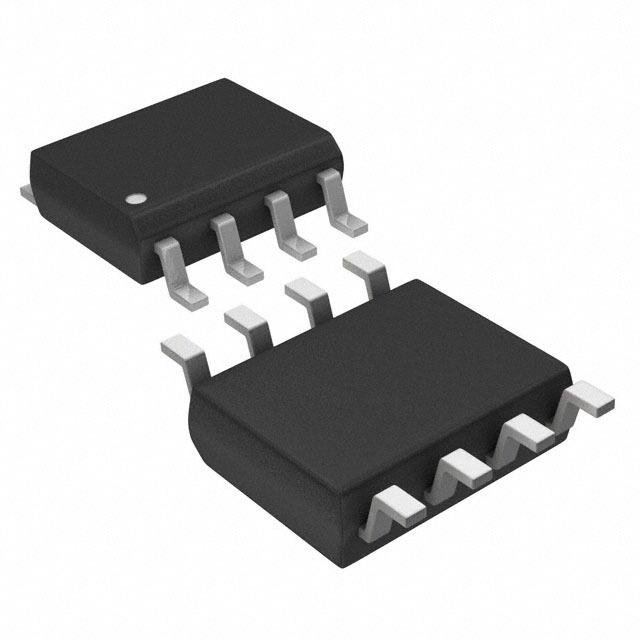

25C160 系列 16 Kb 2 K x 8 5.5 V 表面贴装 SPI™ 总线 串行 EEPROM - SOIC-8

DESCRIPTION

The Technology Inc. 25C080/160 are 8K and 16K bit Serial Electrically Erasable PROMs. The memory is accessed via a simple Serial Peripheral Interface SPI compatible serial bus. The bus signals required are a clock input SCK plus separate data in SI and data out SO lines. Access to the device is controlled through a chip select CS input, allowing any number of devices to share the same bus.

FEATURES

• SPI modes 0,0 and 1,1

• 3 MHz Clock Rate

• Single 5V supply

• Low Power CMOS Technology

\- Max Write Current: 5 mA

\- Read Current: 1.0 mA

\- Standby Current: 1 µA typical

• Organization

\- 1024 x 8 for 25C080

\- 2048 x 8 for 25C160

• 16 Byte Page

• Self-timed ERASE and WRITE Cycles

• Sequential Read

• Block Write Protection

\- Protect none, 1/4, 1/2, or all of Array

• Built-in Write Protection

\- Power On/Off Data Protection Circuitry

\- Write Latch

\- Write Protect Pin

• High Reliability

\- Endurance: 10M cycles guaranteed

\- Data Retention: >200 years

\- ESD protection: >4000 V

• 8-pin PDIP/SOIC Packages

• Temperature ranges supported

\- Commercial C: 0°C to +70°C

\- Industrial I: -40°C to +85°C

\- Automotive E: -40˚C to +125˚C
