24AA01-I/SN

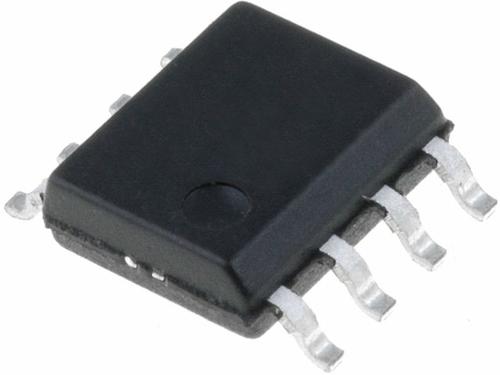

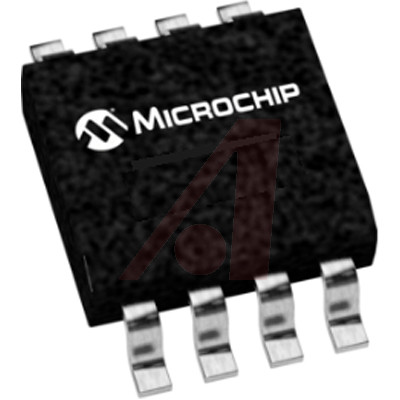

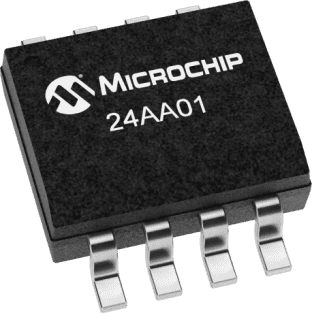

MICROCHIP  24AA01-I/SN  EEPROM, 1 Kbit, 128 x 8位, 400 kHz, I2C, SOIC, 8 引脚

The is a 1kB I²C serial Electrically Erasable Programmable Read-Only Memory EEPROM organized as one block of 128 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.8V with standby and active currents of only 1µA and 1mA, respectively. The 24XX01 also has a page write capability for up to 8 bytes of data.

.

Single-supply with operation down to 1.8V

.

Low-power CMOS technology

.

2-wire serial interface I²C™ compatible

.

Schmitt trigger inputs for noise suppression

.

Output slope control to eliminate ground bounce

.

100 and 400kHz Clock compatibility

.

Self-timed write cycle

.

Page write buffer for up to 8 bytes

.

2ms Typical write cycle time for page write

.

Hardware write-protect for entire memory

.

Can be operated as a serial ROM

.

ESD protection >4000V

.

1000000 Erase/write cycles

.

Data retention >200 years
