24LC1026T-I/SM

EEPROM 1024K 128K X 8 2.5V SER EE 128Byte PAGE

Description:

The Technology Inc. 24AA1026/24LC1026/24FC1026 24XX1026

.

is a 128K x 8 1024K bit Serial Electrically Erasable PROM, capable of operation across a broad voltage range 1.7V to 5.5V. It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device has both byte write and page write capability of up to 128 bytes of data.

Features:

• Low-Power CMOS Technology:

\- Read current 450µA, maximum

\- Standby current 5µA, maximum

• 2-Wire Serial Interface, I2C™ Compatible

• Cascadable up to Four Devices

• Schmitt Trigger Inputs for Noise Suppression

• Output Slope Control to Eliminate Ground Bounce

• 100 kHz and 400 kHz Clock Compatibility

• 1 MHz Clock for FC Versions

• Page Write Time 3 ms, typical

• Self-Timed Erase/Write Cycle

• 128-Byte Page Write Buffer

• Hardware Write-Protect

• ESD Protection >400V

• More than 1 Million Erase/Write Cycles

• Data Retention >200 Years

• Factory Programming Available

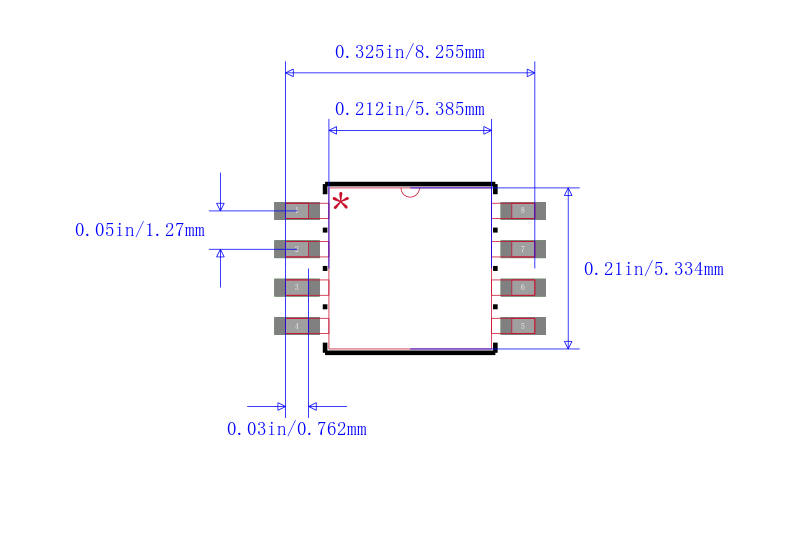

• Packages include 8-lead PDIP, SOIJ and SOIC

• Pb-Free and RoHS Compliant

• Temperature Ranges:

\- Industrial I: -40℃ to +85℃

\- Automotive E: -40℃ to +125℃
