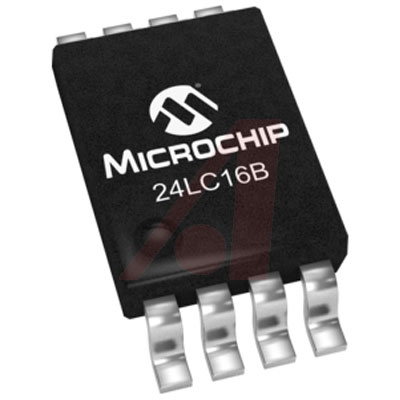

24LC16BT-E/ST

16K I2C⑩串行EEPROM 16K I2C™ Serial EEPROM

Description:

The Technology Inc. 24AA16/24LC16B 24XX16

.

is a 16 Kbit Electrically Erasable PROM. The device is organized as eight blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V with standby and active currents of only 1μA and 1 mA, respectively. The 24XX16 also has a page write capability for up to 16 bytes of data. The 24XX16 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 DFN and MSOP packages, and is also available in the 5-lead SOT-23 package.

Features:

• Single supply with operation down to 1.7V 24AA16 devices, 2.5V for 24LC16B devices

• Low-power CMOS technology:

\- Active current 1 mA, typical

\- Standby current, 1 μa, typical

• 2-wire serial interface, I2C™ compatible

• Schmitt Trigger inputs for noise suppression

• Output slope control to eliminate ground bounce

• 100 kHz 2.5V and 400 kHz clock compatibility

• Page write time 5 ms max.

• Self-timed erase/write cycle

• 16-byte page write buffer

• Hardware write-protect

• ESD protection > 4,000V

• More than 1 million erase/write cycles

• Data retention > 200 years

• Factory programming available

• Packages include 8-lead PDIP, SOIC, TSSOP, MSOP, DFN and SOT-23-5

• Pb-free and RoHS compliant

• Temperature ranges:

\- Industrial I:  -40°C to +85°C

\- Automotive E: -40°C to +125°C
