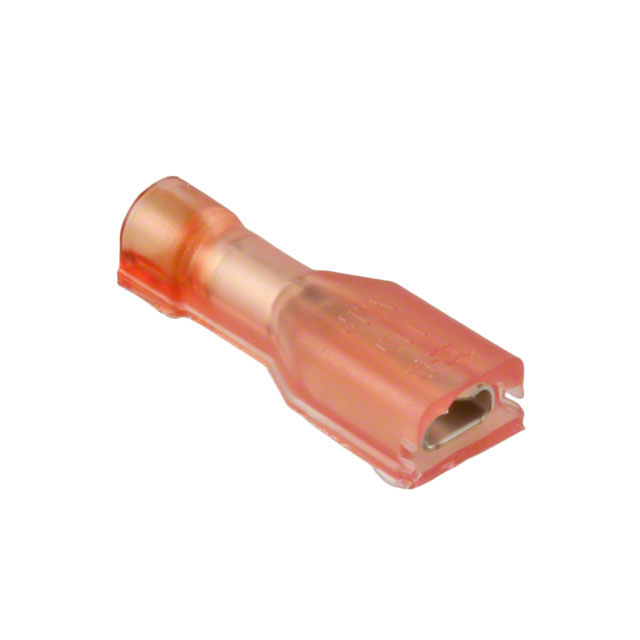

2-520979-2图片17
2-520979-2图片18
2-520979-2概述

AMP FROM TE CONNECTIVITY  2-520979-2  绝缘接线端子, 快拆型, 0.25英寸, 红色

0.110"(2.79mm),0.125"(3.18mm) 快速连接 母头 18-22 AWG 压接 完全绝缘


得捷:
CONN QC RCPT 18-22AWG 0.110


e络盟:
绝缘接线端子, 快拆型, 0.25英寸, 红色


艾睿:
Using the quick disconnect terminal 2-520979-2 wire terminal from TE Connectivity is the easiest way to connect to your terminal blocks. It has a receptacle type gender. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. This product is 18.66 mm long and 6.98 mm. Its wire is 18-22 AWG.


安富利:
Quick Disconnect Terminal 18-22AWG RCP 18.66mm 6.98mm Tin Strip on Reel


Chip1Stop:
Quick Disconnect Terminal 18-22AWG RCP 18.66mm 6.98mm Tin Strip on Reel


Verical:
Quick Disconnect Terminal 18-22AWG Brass Red RCP 18.66mm Tin T/R


Newark:
# AMP - TE CONNECTIVITY  2-520979-2  Quick Disconnect Terminal, Ultra-Fast Plus FASTON Series, 22 AWG, 18 AWG, 0.82 mm²


MASTER:
RECEPTACLE ASSEMBLY, ULTRA-FAST PLUS, .110/.125 SERIES, 22-18 AWG


Powell:
Ultra-Fast Receptacles & Tabs


Online Components:
RECEPTACLE ASSEMBLY, ULTRA-FAST PLUS, .110/.125 SERIES, 22-18 AWG


AMEYA360:
CONN QC RCPT 18-22AWG 0.110


Electro Sonic:
ULTRA-FAST .110/.125 ASY REC 22-18 TPBR


2-520979-2中文资料参数规格
技术参数

极性 Female

线规 18AWG ~ 22AWG

触点电镀 Tin

方向 Straight

易燃性等级 UL 94 V-2

封装参数

安装方式 Quick Connect

外形尺寸

长度 18.67 mm

宽度 6.98 mm

物理参数

颜色 Red

触点材质 Brass

材质 Brass

绝缘材质 Nylon

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买2-520979-2
型号: 2-520979-2
描述:AMP FROM TE CONNECTIVITY  2-520979-2  绝缘接线端子, 快拆型, 0.25英寸, 红色
