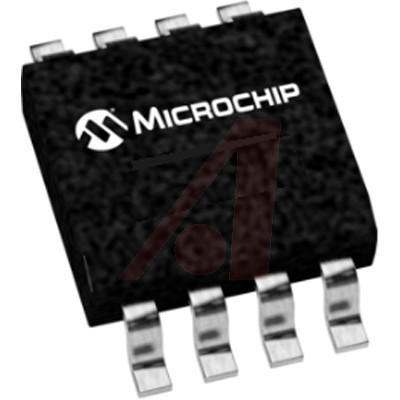

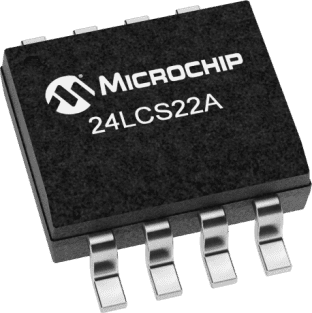

24LCS22AT-I/SN

24LCS22系列 2kb I2C 双线 256x8位 2.5V 串行 电可擦除PROM 表面贴装-SOIC-8

Description:

The Technology Inc. 24LCS22A is a 256 x 8-bit dual-mode Electrically Erasable PROM EEPROM. This

device is designed for use in applications requiring storage and serial transmission of configuration and control information.

Features:

• Single Supply with Operation down to 2.5V

• Supports Enhanced EDID™E-EDID™ 1.3

• Completely Implements DDC1™/DDC2™Inter face for Monitor Identification, including Recovery to DDC1

• 2 Kbit Serial EEPROM Low-Power CMOS Technology:

\- 1 mA active current, typical

-10μA standby current, typical at 5.5V

• 2-Wire Serial Interface Bus, I2C™ Compatible

• 100 kHz 2.5V and 400 kHz 5V Compatibility

• Self-Timed Write Cycle including Auto-Erase

• Hardware Write-Protect Pin

• Page Write Buffer for up to Eight Bytes

• 1,000,000 Erase Write Cycles

• Data Retention >200 years

• ESD Protection >4000V

• 8-pin PDIP and SOIC Packages

• Available Temperature Ranges:

• Pb-Free and RoHS Compliant

\- Industrial I -40°C to +85°C
