1K I2C ™串行EEPROM 1K I2C™ Serial EEPROM
* Single-Supply with Operation down to 1.5V * Low-Power CMOS Technology: * 400 μA active current, maximum * 1 μA standby current, maximum * 2-Wire Serial Interface Bus, I2C™ Compatible * Schmitt Trigger Inputs for Noise Suppression * Output Slope Control to Eliminate Ground Bounce * 100 kHz and 400 kHz Compatibility * Page Write Buffer for up to 16 Bytes * Self-Timed Write Cycle including Auto-Erase * Hardware Write Protection for the Entire Array 00h-7Fh * Cascadable up to Eight Devices * More than 1 Million Erase/Write Cycles * ESD Protection > 4,000V * Data Retention > 200 Years * Factory Programming QTP Available * 8-pin PDIP, SOIC, TSSOP, TDFN and MSOP Packages * 6-lead SOT-23 package * Temperature Range: * -20°C to +85°C * Pb-Free and RoHS Compliant
工作电压 1.5V ~ 3.6V
时钟频率 400 kHz
存取时间 900 ns
存取时间Max 900 ns
工作温度Max 85 ℃
工作温度Min -20 ℃
电源电压 1.5V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.5 V
安装方式 Surface Mount
引脚数 6

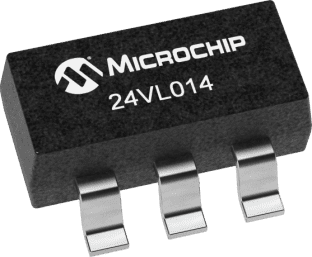

封装 SOT-23-6
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-6
工作温度 -20℃ ~ 85℃
产品生命周期 Active

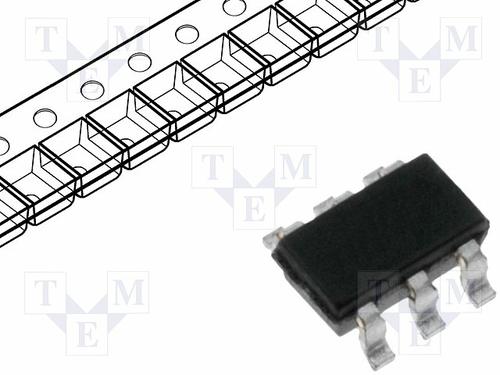

包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
