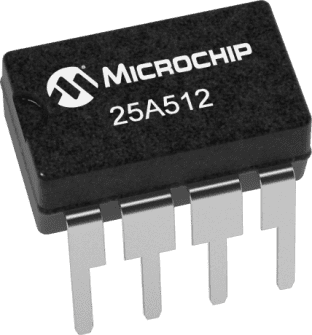

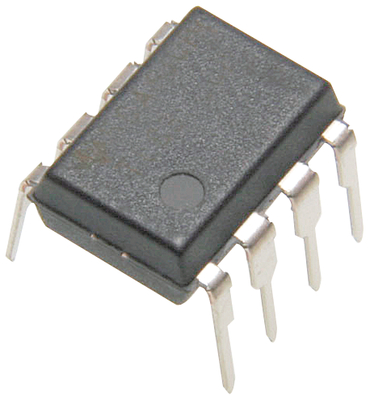

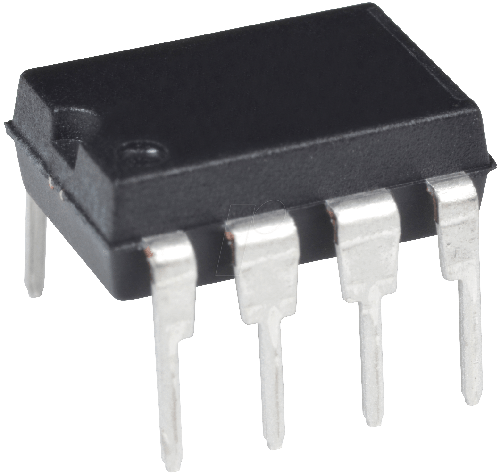

25A512-I/P

MICROCHIP  25A512-I/P  EEPROM, 512 Kbit, 64K x 8位, 10 MHz, SPI, DIP, 8 引脚

The is a 512kB SPI bus serial Electrically Erasable Programmable Read-Only Memory EEPROM with byte-level and page-level serial EEPROM functions. It also features page, sector and chip erase functions typically associated with Flash-based products. These functions are not required for byte or page write operations. The memory is accessed via a simple serial peripheral interface SPI compatible serial bus. The bus signals required are a clock input SCK plus separate data in SI and data out SO lines. Access to the device is controlled by a chip select CS input. Communication to the device can be paused via the hold pin HOLD. While the device is paused, transitions on its inputs will be ignored with the exception of chip select, allowing the host to service higher priority interrupts.

.

10MHz Maximum clock speed

.

Byte and page-level write operations

.

No page or sector erase required

.

Low-power CMOS technology

.

Electronic signature for device ID

.

Self-timed erase and write cycles

.

Sector write protection

.

Built-in write protection

.

Power-on/off data protection circuitry

.

Write enable latch

.

Write-protect pin

.

High reliability

.

Endurance - 1million erase/write cycles

.

Data retention - >200 years

.

ESD protection - 4000V
