USB to Serial RS-232 AdapterA compact USB to Serial RS-232 adapter to provide a Virtual Com Port for boards that have a DE9 9-pin female serial connector, but require a USB connection to a PC.USB 1.1 and 2.0 compatible Connects to a computer via a USB A to Mini-B cable not included DE9 male socket to connect to the target board"s serial programming and debugging port FTDI drivers for most Windows PC operating systems are included with Parallax programming environment software Drivers for different operating systems are available from FTDI chip Power supply: +5Vdc from USB port or powered hub Communication: Full speed USB, full duplex serial from 300baud to 3Mbaud Dimensions: 51 x 16 x 12mm Operating temperature range: 0 to +70°C ### BASIC Stamp 和 BoE-BotBASIC Stamp 是一台单板计算机,它在其微控制器中运行 PBASIC 并行语言解释器。 开发者的代码储存于 EEPROM 中,也能够用来储存数据。 PBASIC 是用于输入/输出的易于使用的命令,就像打开或关闭设备,带有传感器等。更高级的命令使 BASIC Stamp 模块带有其他集成电路,可以彼此进行通讯并在网络中操作。 BASIC Stamp 微控制器由于便于使用,广泛支持免费资源,在娱乐和小型工程上有广泛应用。

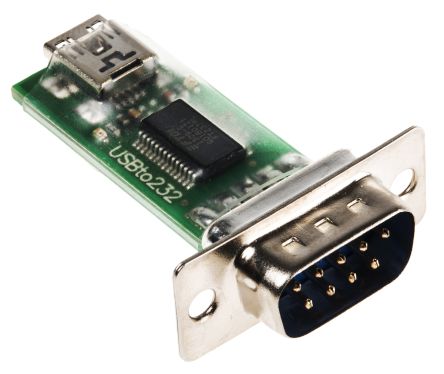

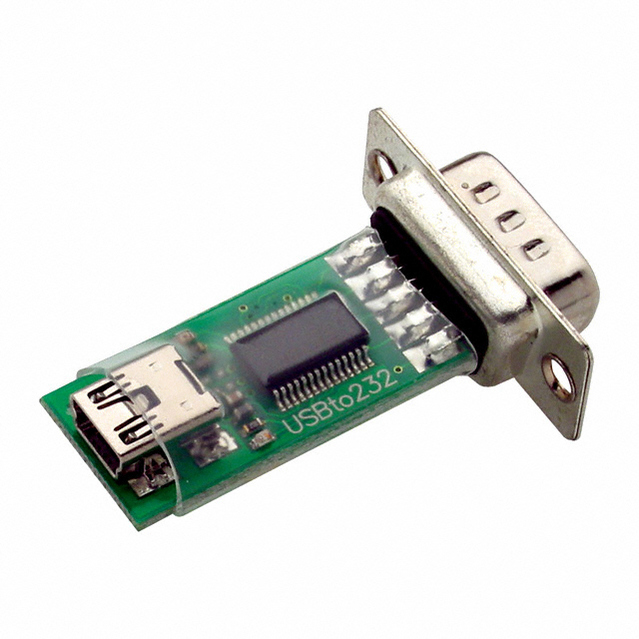

USB to Serial RS-232 Adapter

A compact USB to Serial RS-232 adapter to provide a Virtual Com Port for boards that have a DE9 9-pin female serial connector, but require a USB connection to a PC.

USB 1.1 and 2.0 compatible

Connects to a computer via a USB A to Mini-B cable not included

DE9 male socket to connect to the target board"s serial programming and debugging port

FTDI drivers for most Windows PC operating systems are included with programming environment software

Drivers for different operating systems are available from FTDI chip

Power supply: +5Vdc from USB port or powered hub

Communication: Full speed USB, full duplex serial from 300baud to 3Mbaud

Dimensions: 51 x 16 x 12mm

Operating temperature range: 0 to +70°C

BASIC Stamp 是一台单板计算机,它在其微控制器中运行 PBASIC 并行语言解释器。 开发者的代码储存于 EEPROM 中,也能够用来储存数据。 PBASIC 是用于输入/输出的易于使用的命令,就像打开或关闭设备,带有传感器等。更高级的命令使 BASIC Stamp 模块带有其他集成电路,可以彼此进行通讯并在网络中操作。 BASIC Stamp 微控制器由于便于使用,广泛支持免费资源,在娱乐和小型工程上有广泛应用。

28030中文资料参数规格
其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买28030
型号: 28030
制造商: Parallax
描述:USB to Serial RS-232 Adapter A compact USB to Serial RS-232 adapter to provide a Virtual Com Port for boards that have a DE9 9-pin female serial connector, but require a USB connection to a PC. USB 1.1 and 2.0 compatible Connects to a computer via a USB A to Mini-B cable not included DE9 male socket to connect to the target board"s serial programming and debugging port FTDI drivers for most Windows PC operating systems are included with Parallax programming environment software Drivers for different operating systems are available from FTDI chip Power supply: +5Vdc from USB port or powered hub Communication: Full speed USB, full duplex serial from 300baud to 3Mbaud Dimensions: 51 x 16 x 12mm Operating temperature range: 0 to +70°C ### BASIC Stamp 和 BoE-Bot BASIC Stamp 是一台单板计算机,它在其微控制器中运行 PBASIC 并行语言解释器。 开发者的代码储存于 EEPROM 中,也能够用来储存数据。 PBASIC 是用于输入/输出的易于使用的命令,就像打开或关闭设备,带有传感器等。更高级的命令使 BASIC Stamp 模块带有其他集成电路,可以彼此进行通讯并在网络中操作。 BASIC Stamp 微控制器由于便于使用,广泛支持免费资源,在娱乐和小型工程上有广泛应用。
