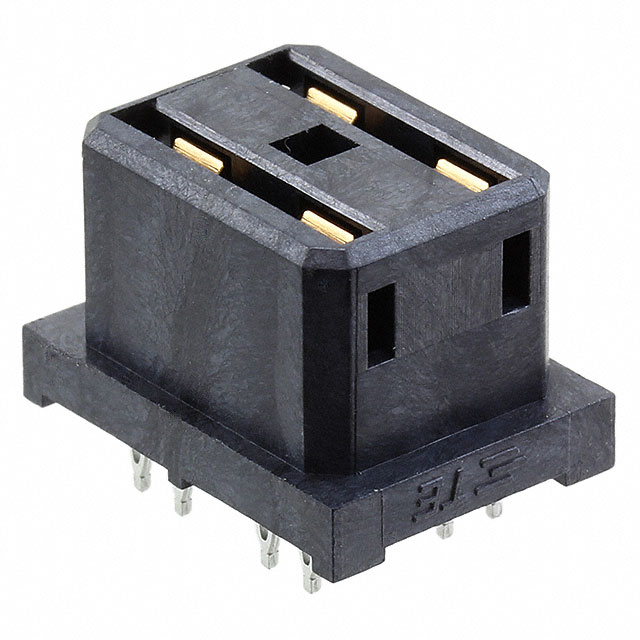

2169806-1

高速/模块连接器 IMP Power 3PR Vert Recp Tin

When you have numerous wires connected in parallel, then use this high density backplane connector from to make sure all the data flows through. This RCP connector"s 8 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 250 VDC|250VAC. It has a straight body orientation. This is a 4-row connector. It has a receptacle type gender. This device has a maximum current rating of 20 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This backplane connector has an operating temperature of -55 to 85 °C. 2169806-1 is housed in black liquid crystal polymer. It uses the press fit termination method. This product is 11 mm long, 9.8 mm tall and 14.98 mm deep.
