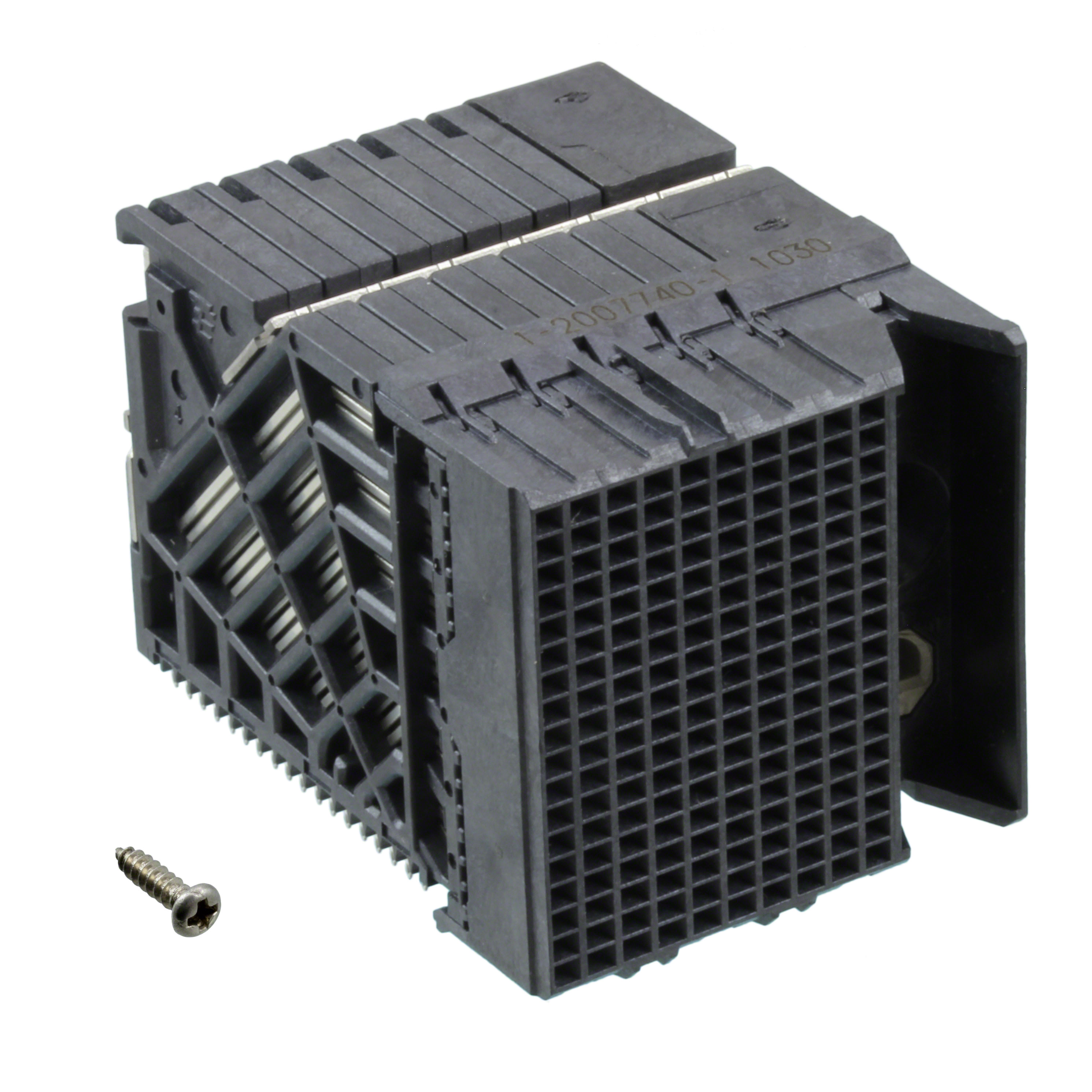

2007740-1

Conn Backplane RCP 120Signal/60Ground POS 1.9mm Solder RA Thru-Hole Tube

插座，母型插口 板边缘，通孔，直角 黑色 Impact，右侧导引

得捷:
CONN RCPT IMPACT 180POS EDGE MNT

艾睿:
TE Connectivity&s;s 2007740-1 backplane connector will transfer signals at a faster rate than other connector types. This RCP connector&s;s 120signal / 60ground contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 120 VDC|120VAC. This is a 18-row connector. Its pitch is 1.9 mm. It has a receptacle type gender. It has a right angle body orientation. This device has a maximum current rating of 0.75 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 2007740-1 is housed in liquid crystal polymer. It uses the solder termination method. This product is 26.6 mm long, 27.5 mm tall and 37.3 mm deep. This backplane connector has an operating temperature of -55 to 85 °C.

安富利:
AMP2007740-1

Chip1Stop:
Conn Backplane RCP 120Signal/60Ground POS 1.9mm Solder RA Thru-Hole Tube

Verical:
Conn Backplane RCP 120Signal/60Ground POS 1.9mm Solder RA Thru-Hole Tube
