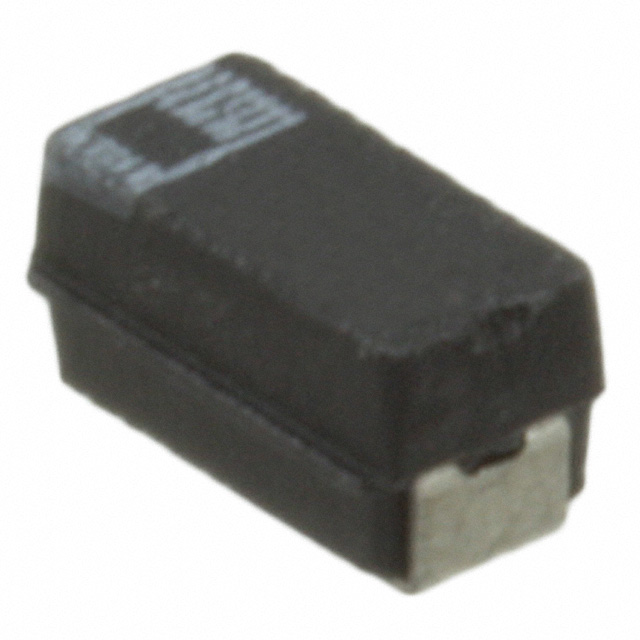

293D106X96R3A2TE3

VISHAY  293D106X96R3A2TE3  钽电容, 10UF 6.3V 3.4Ω 10%, 3216-18, 整卷

**Features**

* Molded Case Available in Five Case Codes

* Compatible with “High Volume” Automatic Pick and Place Equipment

* Optical Character Recognition Qualified

* Meets IEC Specification QC300801/US0001 and EIA 535BAAC

* Capacitance Range: 0.10 μF to 1000 μF

欧时:
### 293D 系列Vishay 293D 系列工业等级 TANTAMOUNT® 电容器为固体钽质，表面安装，且具有 100% 表面无光泽镀锡终端。 293D 系列提供稳定的电气参数、高可靠性和长工作寿命；它们适用于需要容积效率的应用。 符合 IEC 规格 QC300801/US0001 和 EIA 535BAAC 极性带表示阳极（+ve 接线端子） 尺寸 mm --- 外壳代码 | L | W | H | P ±0.3 | Tw ±0.1 | TH min. A 1206 | 3.2 ±0.2 | 1.6 ±0.2 | 1.6 ±0.2 | 0.8 | 1.2 | 0.7 B | 3.5 ±0.2 | 2.8 ±0.2 | 1.9 ±0.2 | 0.8 | 2.2 | 0.7 C | 6.0 ±0.3 | 3.2 ±0.3 | 2.5 ±0.3 | 1.3 | 2.2 | 1.0 D | 7.3 ±0.3 | 4.3 ±0.3 | 2.8 ±0.3 | 1.3 | 2.4 | 1.0 E | 7.3 ±0.3 | 4.3 ±0.3 | 4.0 ±0.3 | 1.3 | 2.4 | 1.0 ![http://china.rs-online.com/largeimages/LF334947-24.gif]http://china.rs-online.com/largeimages/LF334947-24.gif ### 表面安装 85 ° C

艾睿:
Cap Tant Solid 10uF 6.3V A CASE 10% 3.2 X 1.6 X 1.6mm SMD 3216-18 3.4 Ohm 125°C T/R

富昌:
293D 系列 1206 10 uF ±10 % 6.3 V 表面贴装 标准 模压 钽电容

Chip1Stop:
Cap Tant Solid 10uF 6.3V A CASE 10% 3.2 X 1.6 X 1.6mm SMD 3216-18 3.4 Ohm 125 C T/R

Newark:
# VISHAY  293D106X96R3A2TE3  Surface Mount Tantalum Capacitor, TANTAMOUNT®, 10 µF, 6.3 V, 293D Series, ± 10%, 1206 [3216 Metric]
