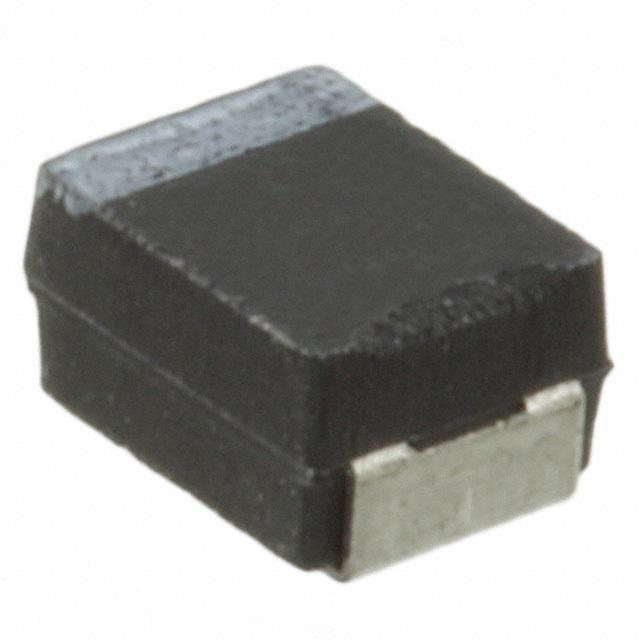

VISHAY 293D106X9010B2TE3 钽电容, 10UF 10V, 2.5Ω, 0.1, 3528-21, 整卷
The Vishay TANTAMOUNT 293D series are standard industrial grade solid tantalum chip capacitors. The capacitance value ranges from 0.1µF to 1000µF. Tantalum capacitors are the preferred choice in applications where volumetric efficiency, stable electrical parameters, high reliability and long service life are primary considerations.
- .
- Moulded case available in six EIA case sizes A, B, C, D, E, V
- .
- Working voltage range of 4VDC to 75VDC
- .
- Available in ±5%, ±10% and ±20% tolerance
- .
- Operating temperature ranges from -55°C to +125°C
- .
- Compatible with high volume automatic pick and place equipment
- .
- Meets IEC specification QC300801/US0001 and EIA535BAAC mechanical and performance requirements
- .
- 100% surge current test D and E sizes
额定电压DC 1.00 V
电容 10 µF
等效串联电阻ESR 2.5 Ω
容差 ±10 %
Q值 6.0
纹波电流 0.15 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装公制 3528-21
封装 3528
长度 3.5 mm
宽度 2.8 mm
高度 1.9 mm
封装公制 3528-21
封装 3528
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
包装方式 Cut Tape CT
制造应用 Portable Devices, Industrial, 电源管理, 工业, 便携式器材, 消费电子产品, Power Management, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
293D106X9010B2TE3 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
293D106X9016B2TE3 威世 | 类似代替 | 293D106X9010B2TE3和293D106X9016B2TE3的区别 |
293D106X9020B2TE3 威世 | 类似代替 | 293D106X9010B2TE3和293D106X9020B2TE3的区别 |
293D106X0010B2TE3 威世 | 类似代替 | 293D106X9010B2TE3和293D106X0010B2TE3的区别 |
