VISHAY 293D106X9010A2TE3 表面贴装钽电容, TANTAMOUNT®, 293D系列, 10 µF, ± 10%, 10 V, 1206 [3216 公制], A
The is a TANTAMOUNT® surface mount solid tantalum Chip Capacitor with 100% matte tin-plated terminations and moulded case. Compatible with high volume automatic pick and place equipment. Suitable for general purpose.
- .
- Standard industrial grade
- .
- Level-1 moisture sensitivity
- .
- Optical character recognition qualified
- .
- Meets EIA-535-BAAC mechanical and performance requirements
- .
- Compatible with high volume automatic pick and place equipment
- .
- Meets IEC specification QC300801/US0001 and EIA535BAAC mechanical and performance requirements
- .
- 100% surge current test D and E sizes
额定电压DC 1.00 V
电容 10 µF
等效串联电阻ESR 3.4 Ω
容差 ±10 %
Q值 6.0
纹波电流 0.15 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装公制 3216-18
封装 1206

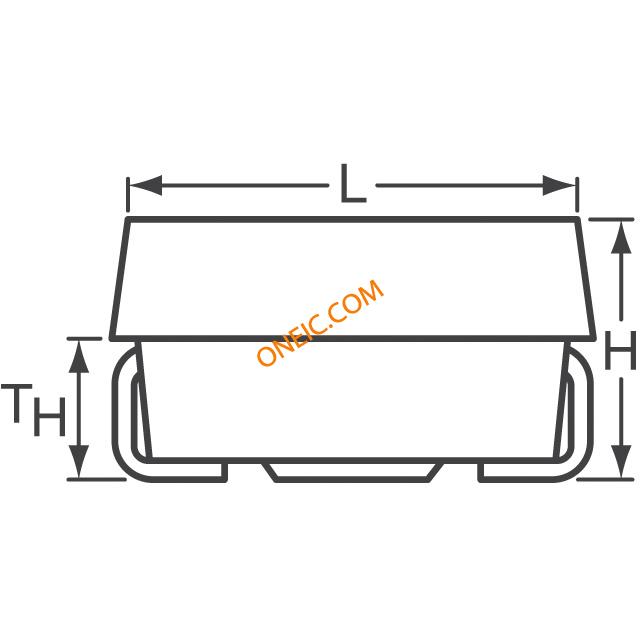

长度 3.2 mm
宽度 1.6 mm
高度 1.6 mm
封装公制 3216-18
封装 1206
介质材料 Tantalum
工作温度 -55℃ ~ 125℃
包装方式 Cut Tape CT
制造应用 Portable Devices, 便携式器材, Industrial, Power Management, 工业, 通信与网络, Communications & Networking, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
293D106X9010A2TE3 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
293D106X9016A2TE3 威世 | 类似代替 | 293D106X9010A2TE3和293D106X9016A2TE3的区别 |
293D106X96R3A2TE3 威世 | 类似代替 | 293D106X9010A2TE3和293D106X96R3A2TE3的区别 |
293D106X0010A2TE3 威世 | 类似代替 | 293D106X9010A2TE3和293D106X0010A2TE3的区别 |
