2701416概述

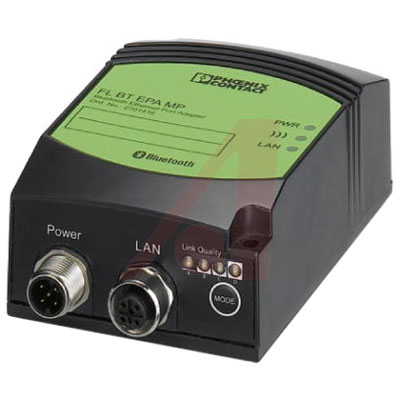

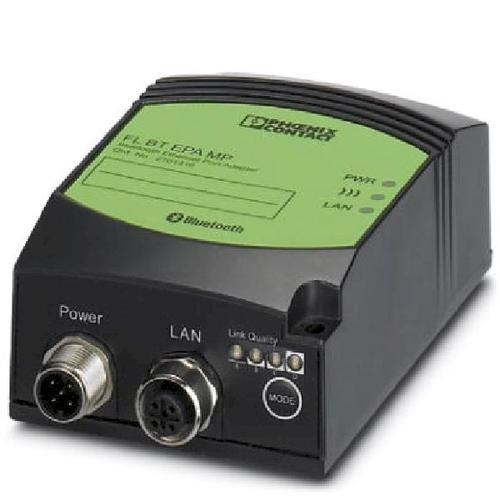

Bluetooth Ethernet Port Adapter, Ext. Ant. Conn., BT Acc. Point and Client Mode

Our Bluetooth modules can be used to easily, reliably, and cost-effectively integrate mobile or difficult to access automation devices or I/O modules into your Ethernet automation network. With “black channel listing” and “low emission mode”, Industrial Bluetooth can also be operated parallel to WLAN networks without any interference. Quick and straightforward startup with configuration via MODE button, web interface or directly from a controller is yet another feature of this solution.

**Features:**

* External RSMA Antenna Connection

* Range of Up to 200 m

* Protocol-Transparent Communication on Layer 2

* IP65 Protection Class

* WLAN Coexistence Functions AFH, LEM, Black Channel Listing

2701416中文资料参数规格
技术参数

频率 2.4 GHz

工作温度Max 65 ℃

工作温度Min -40 ℃

外形尺寸

高度 91 mm

物理参数

工作温度 -40℃ ~ 65℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

海关信息

ECCN代码 5A002A1

HTS代码 8517620050

数据手册

在线购买2701416
型号: 2701416
描述:Bluetooth Ethernet Port Adapter, Ext. Ant. Conn., BT Acc. Point and Client Mode
