Wireless Ethernet Radio Wireless Ethernet

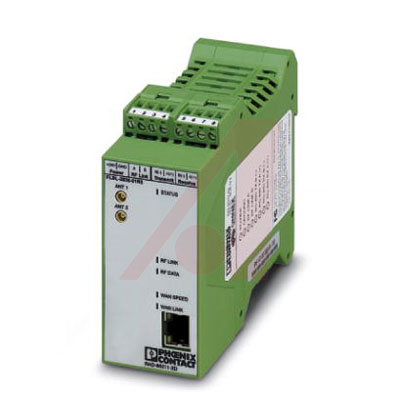

Factory Line Wireless WLAN access point, 24 VDC; IEEE 802.11 a/b/g; 2.4 GHz; 5 GHz, client adapter, bridge; antenna diversity; WiFi compliant; web-based management; 802.11i, DIN rail mounting, without antenna.
Features:
* Ethernet Interface
* Type of Connection: RJ45 Female Connector
**Wireless interface:**
* Transmission Capacity: 20 dBm EIRP
* Number of Wireless Interfaces: 1 IEEE 802.11 a/b/g
**Antenna:**
* Assembly Instructions: Antenna Not Included
**Power Supply for Module Electronics:**
* Type of Connection: Via COMBICON
* Supply Voltage: 24 VDC
* Range of Supply Voltages: 9 VDC ... 30 VDC
* Supply Current: 215 mA 24 VDC
**Functions:**
* Operating Modes: Access Point, Client, Bridge
* Configuration: Web-Based Management
* Automatic Channel Selection: Yes
* Security: WEP 64 bit/128 bit
* WPA TKIP
* 802.11i WPA2 AES
* WPA PSK Preshared Key
General data
Width 45 mm
Height 99 mm
Depth 113 mm
Weight 250 g
Ambient temperature operation 0 °C ... 65 °C
Permissible humidity operation 5 % ... 90 % non-condensing
Air pressure operation 795 hPa ... 1080 hPa up to 2000 m above mean sea level
Degree of protection IP20
Mechanical tests Shock in acc. with IEC 60068-2-27:1997 25g
Vibration operation in acc. with IEC 60068-2-6:1982 5g
Wireless licences USA
Canada
"
