2961666661

FAIR-RITE  2961666661  电感,绕线磁珠 250Z

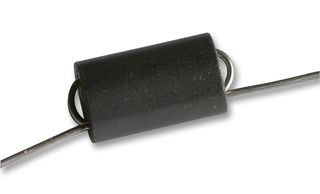

The is a Wound Bead with 61-grade material used in EMI applications for suppression of noise frequencies above 200MHz. A high frequency NiZn ferrite developed for a range of inductive applications up to 25MHz. Wire used for winding is oxygen-free high conductivity copper with 100% matte tin plating over a nickel undercoating. Beads are controlled for impedance limits only. Minimum impedance values are specified for the + marked frequencies. The 61 material parts on the 4291A RF impedance analyser.

.

Minimum impedance is typically the listed impedance less 20%

.

-55 to 125°C Operating temperature range
