NPN 晶体管,ON Semiconductor这些 ON Semiconductor 双极晶体管可放大模拟或数字信号。 它们还可切换直流或用作振荡器。 ### 标准Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.### 双极性晶体管,On SemiconductorON Semiconductor 的各种双极晶体管,包括以下类别:小信号晶体管 通用晶体管 双 NPN 和 PNP 晶体管 功率晶体管 高电压晶体管 射频双极晶体管 低噪声,双匹配和复杂的双极晶体管

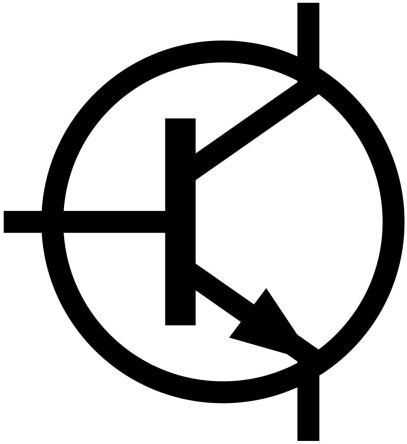

小信号 NPN ,
### 标准
带 S 或 NSV 前缀的制造商部件号具有汽车资格,符合 AEC-Q101 标准。
得捷:
TRANS NPN 160V 0.7A PCP
欧时:

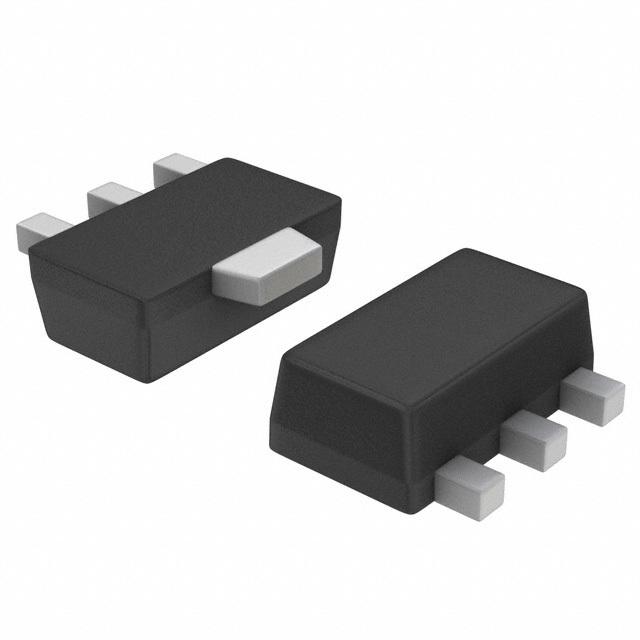

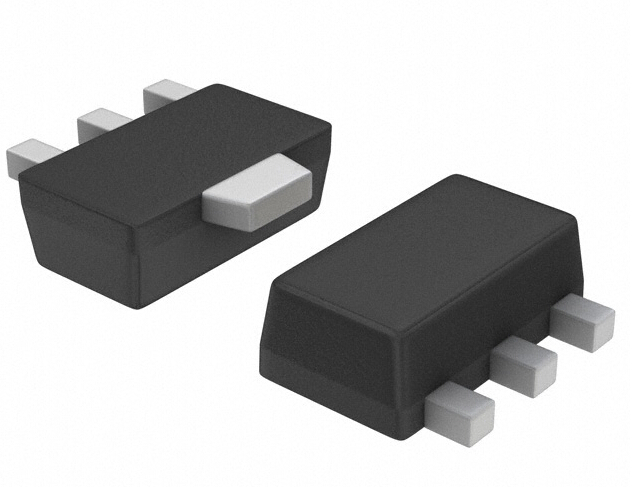

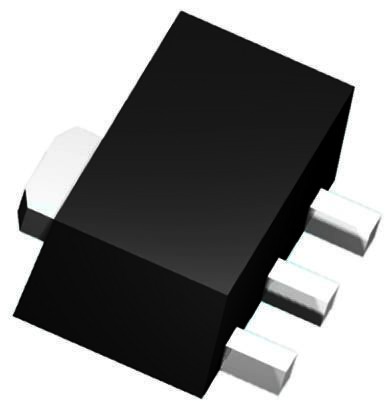

ON Semiconductor 2SC3648T-TD-E , NPN 晶体管, 700 mA, Vce=160 V, HFE:90, 120 MHz, 3引脚 PCP封装
e络盟:
单晶体管 双极, NPN, 160 V, 120 MHz, 1.3 W, 700 mA, 200 hFE
艾睿:
Add switching and amplifying capabilities to your electronic circuit with this NPN 2SC3648T-TD-E GP BJT from ON Semiconductor. This bipolar junction transistor&s;s maximum emitter base voltage is 6 V. Its maximum power dissipation is 1300 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This bipolar junction transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. It has a maximum collector emitter voltage of 160 V and a maximum emitter base voltage of 6 V.
Allied Electronics:
ON Semi 2SC3648T-TD-E NPN Bipolar Transistor, 0.7 A, 160 V, 3-Pin PCP
安富利:
2SC3648 is a Bipolar Transistor, 160V, 0.7A, Low VCEsat, PNPNPN Single PCP for High-Voltage Switching, Pre river Applications.
Chip1Stop:
Trans GP BJT NPN 160V 0.7A 4-Pin3+Tab SOT-89 T/R
Verical:
Trans GP BJT NPN 160V 0.7A 1300mW 4-Pin3+Tab SOT-89 T/R
罗切斯特:
Trans GP BJT NPN 160V 0.7A 4-Pin3+Tab SOT-89 T/R
频率 120 MHz
针脚数 3
极性 N-Channel, NPN
耗散功率 1.3 W
击穿电压集电极-发射极 160 V
集电极最大允许电流 0.7A
最小电流放大倍数hFE 100 @100mA, 5V
最大电流放大倍数hFE 400
额定功率Max 500 mW
直流电流增益hFE 200
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 1.3 W
安装方式 Surface Mount
引脚数 3
封装 SOT-89
长度 4.5 mm
宽度 2.5 mm
高度 1.5 mm
封装 SOT-89
材质 Silicon
工作温度 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Color TV audio output, inverter
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
2SC3648T-TD-E ON Semiconductor 安森美 | 当前型号 | 当前型号 |
