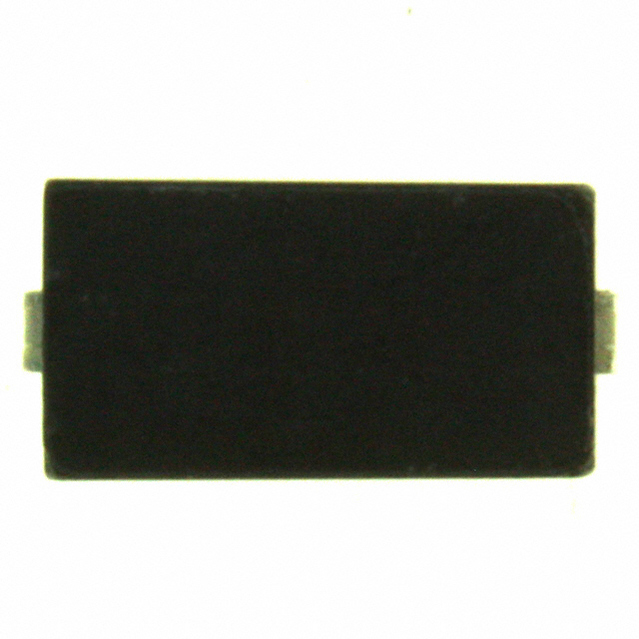

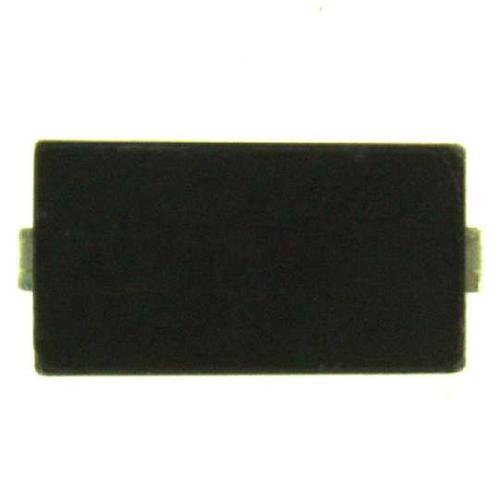

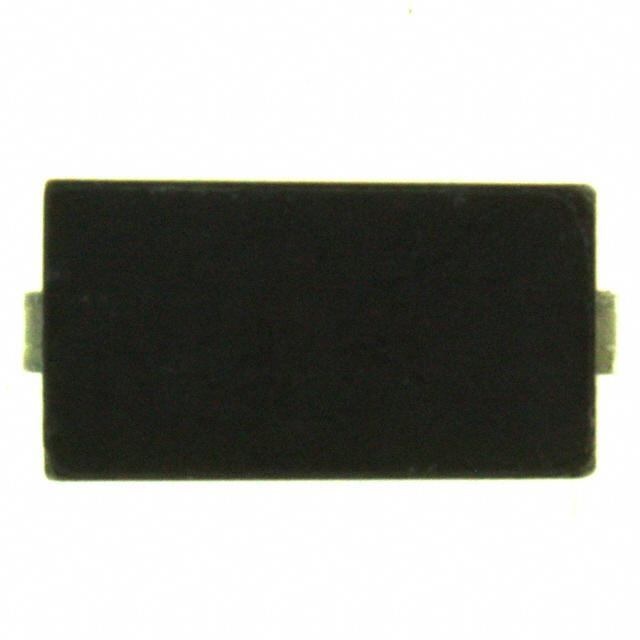

LAIRD TECHNOLOGIES 28F0181-1SR-10 铁氧体磁芯, 2.5X4.5-8.5MM, , 115R

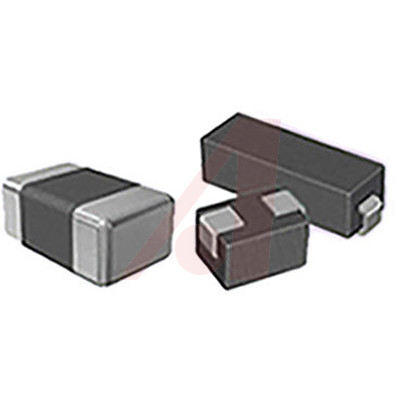

**Laird Chip Beads for Signal Filtering**
These Laird ferrite chip beads have been professionally designed to provide cost-effective EMI filtering of differential mode noise for power lines, general signal lines and high speed signal lines. The ferrite chip beads have an ultra-compact design and have a highly reliable multilayer monolithic construction.
得捷:
FERRITE BEAD 115 OHM 3318 1LN
立创商城:
115 Ω @ 100MHz 10A
艾睿:
Ferrite Beads Chip 115Ohm 25% 100MHz 10A 0.001Ohm DCR T/R
Allied Electronics:
EMI Ferrite SMT Bead Assembly; 10A; 115Ohms @ 100MHz; DCR Max 0.001Ohm
Newark:
# LAIRD TECHNOLOGIES 28F0181-1SR-10 FERRITE, BEAD, 2.5X4.5-8.5MM, , 115R
Win Source:
FERRITE BEAD 115 OHM 3318 1LN
频率 100 MHz
测试频率 100 MHz
额定电流Max 10 A
额定电流DC 10 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.001 Ω
安装方式 Surface Mount
封装 3318 [8545公制]
长度 9.53 mm
宽度 4.65 mm
高度 2.62 mm
封装 3318 [8545公制]
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 车用, Security, Portable Devices, 医用, Medical, Computers & Computer Peripherals, 后勤, Automotive, Consumer Electronics, 消费电子产品, Signal Processing, 便携式器材, Communications & Networking, 信号处理, 通信与网络, 安全, 工业, Logistics, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
