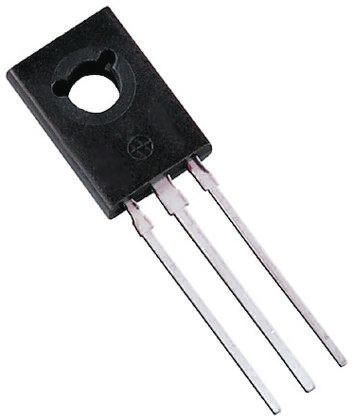

2N6071BTG

ON Semiconductor### 三端双向可控硅开关元件三端双向可控硅开关元件系列（三极管用于交流电，也称为双向闸流晶体管）。 它们用于交流切换和控制应用，电流额定值 1A 至 40A 有效值。 三端双向可控硅开关元件成为用于交流电路方便的开关。

TRIACS 4.0 A RMS, 200 − 600 V

Silicon Bidirectional Thyristors

Designed primarily for full-wave AC control applications, such as light dimmers, motor controls, heating controls and power supplies; or wherever full-wave silicon gate controlled solid-state devices are needed. Triac type thyristors switch from a blocking to a conducting state for either polarity of applied anode voltage with positive or negative gate triggering.

Features

•Sensitive Gate Triggering Uniquely Compatible for Direct Coupling to TTL, HTL, CMOS and Operational Amplifier Integrated Circuit Logic Functions

•Gate Triggering: 4 Mode − 2N6071A, B; 2N6073A, B; 2N6075A, B

•Blocking Voltages to 600 V

•All Diffused and Glass Passivated Junctions for Greater Parameter Uniformity and Stability

•Small, Rugged, Thermopad Construction for Low Thermal Resistance, High Heat Dissipation and Durability

•Device Marking: Device Type, e.g., 2N6071A, Date Code
