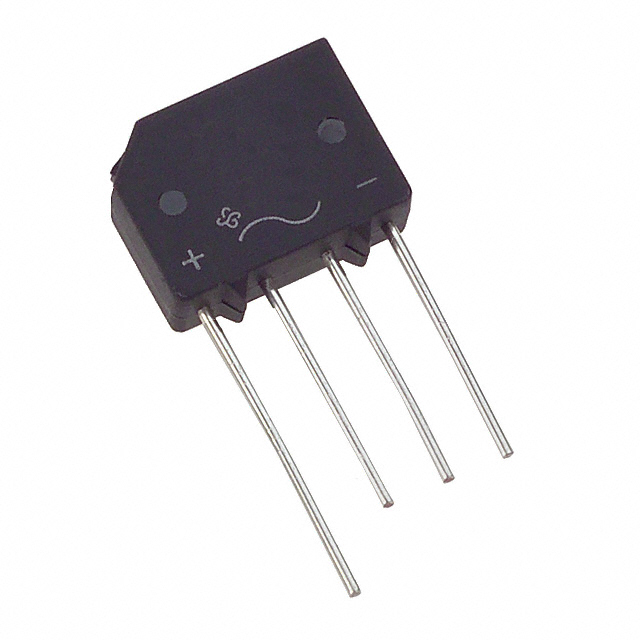

VISHAY 2KBP06M-E4/45 二极管 桥式整流, 单相, 600 V, 2 A, SIP, 1.1 V, 4 引脚
The is a 4-pin single-phase glass passivated Bridge Rectifier Diode with high surge current capability and ideal for printed circuit board. It is general purpose use in AC/DC bridge full wave rectification for home appliances, office equipment and telecommunication applications.
- .
- UL94V-0 Flammability rating
- .
- High case dielectric strength
- .
- Solder dip 275°C maximum 10s, per JESD 22-B106
- .
- UL recognition file number E54214
- .
- 420V Maximum RMS voltage
- .
- -55 to 150°C Operating junction temperature range
针脚数 4
正向电压 1.1V @3.14A
正向电流 2 A
最大正向浪涌电流（Ifsm） 60 A
正向电压Max 1.1 V
工作温度Max 165 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 4
封装 SIP-4
长度 15.24 mm
宽度 5.08 mm
高度 11.68 mm
封装 SIP-4
工作温度 -55℃ ~ 165℃ TJ
产品生命周期 Obsolete
包装方式 Each
制造应用 Power Management, Consumer Electronics, Industrial, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2KBP06M-E4/45 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
2KBP06M-E4/51 威世 | 完全替代 | 2KBP06M-E4/45和2KBP06M-E4/51的区别 |
KBP06M 飞兆/仙童 | 功能相似 | 2KBP06M-E4/45和KBP06M的区别 |
3N257 飞兆/仙童 | 功能相似 | 2KBP06M-E4/45和3N257的区别 |
