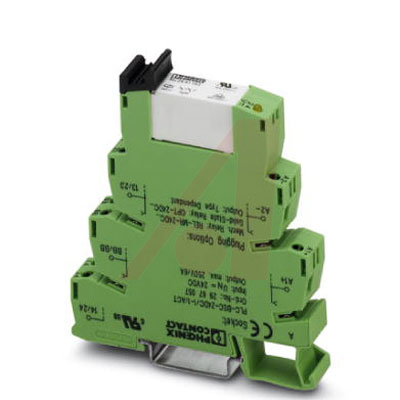

工业继电器 PLCRSC-24DC/1-1/ACT RELAY PN 651-2961192
**PLC-RSC Series**
PLC Interface single- and double-pole relays, and opto-couplers, having the same profile. This allows the modules to be installled in any configuration with a common bridging system and using the same accessories. The V8 adapter connects 8 relays or opto-couplers to a 15 way D-SUB cable.
得捷:
RELAY GEN PURPOSE DPST 6A 24V
欧时:
PLC执行器继电器,螺钉连接基座端子,功率触点微型继电器,2个常开触点
立创商城:
24VDC 6A 无锁存
贸泽:
工业继电器 PLCRSC-24DC/1-1/ACT RELAY PN 651-2961192
艾睿:
Electromechanical Relay 24VDC 1.33KOhm 6A DPST-NO 14x80x94mm DIN Rail PLC Relay
Allied Electronics:
DPST DIN Rail Interface Relay Module Screw, 6A 24V dc
Verical:
Relay Module - PLC-RSC- 24DC/ 1- 1/ACT
MASTER:

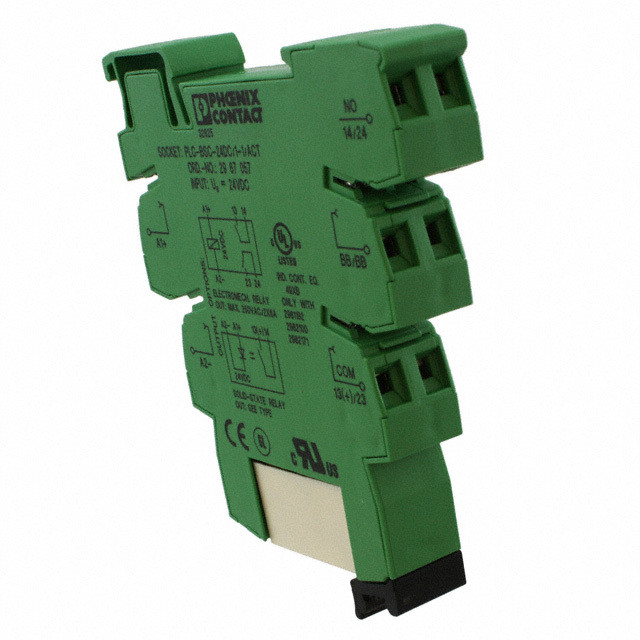

PLC-INTERFACE for output functions - consisting of PLC-BSC.../ACT basic terminal block with screw connection and plug-in miniature relay with power contact - for mounting on DIN rail NS 35/7,5 - 2 N/O contacts 1-1 - input voltage 24 V DC
Online Components:
Electromechanical Relay 24VDC 1.33KOhm 6A DPST-NO 14mm 80mm 94mm DIN Rail PLC Relay
Electro Sonic:
PLC-INTERFACE for output functions - consisting of PLC-BSC.../ACT basic terminal block with screw connection and plug-in miniature relay with power ...
额定电压DC 250 V
额定电压AC 250 V
触点类型 SPDT
触点额定电流 6 A
线圈电压 24 VDC
线圈电流 18 mA
线圈电阻 1.33 KΩ
额定电流Max 6 A
线圈电压DC 24 V
额定功率Max 1.5 KVA
工作温度Max 60 ℃
工作温度Min -40 ℃
额定电压DC Max 250 V
额定电压AC Max 250 V
安装方式 Screw Terminals
封装 -
长度 80 mm
宽度 94 mm
高度 80 mm
封装 -
触点材质 Silver Nickel
工作温度 -25℃ ~ 60℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536410050
