2980021概述

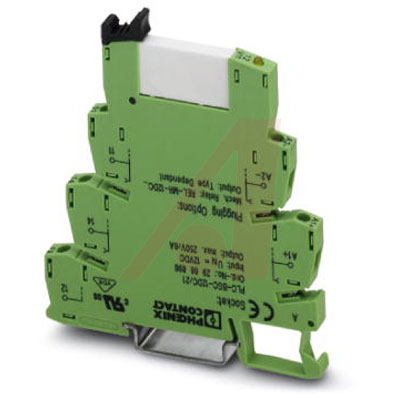

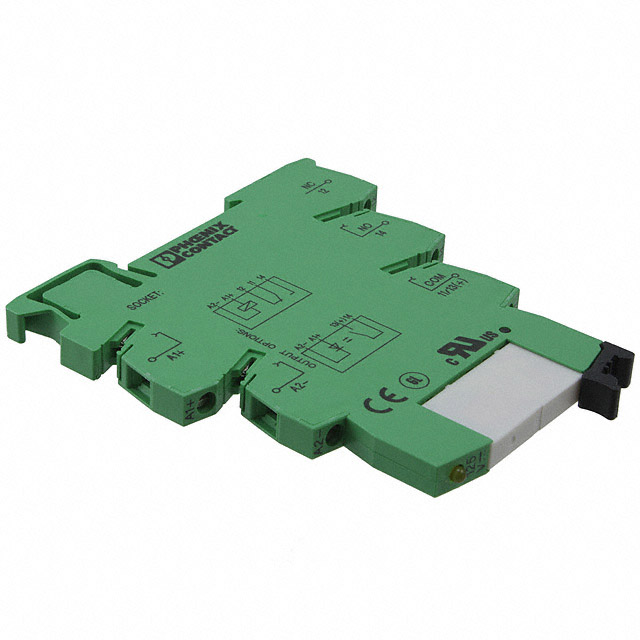

Modular part; Electromechanical Output Relay; 125V in; 250V; 6A out; DIN rail mnt

**PLC-RSC Series**

PLC Interface single- and double-pole relays, and opto-couplers, having the same profile. This allows the modules to be installled in any configuration with a common bridging system and using the same accessories. The V8 adapter connects 8 relays or opto-couplers to a 15 way D-SUB cable.


欧时:
Relay Module


艾睿:
Electromechanical Relay 125VDC 6A SPDT 6.2x80x94mm DIN Rail PLC Relay


Allied Electronics:
Modular part; Electromechanical Output Relay; 125 V in; 250 V; 6A out; DIN rail mnt


Chip1Stop:
Electromechanical Relay 125VDC 6A SPDT6.2x80x94mm DIN Rail PLC Relay


Verical:
Relay Modules


MASTER:
Electromechanical Relay 125VDC 6A SPDT6.2x80x94mm DIN Rail PLC Relay


Online Components:
Electromechanical Relay 125VDC 6A SPDT6.2x80x94mm DIN Rail PLC Relay


Electro Sonic:
PLC relay - consisting of basic terminal block PLC-BSC.../21 with screw connection and pluggable miniature relay with power contact - ...


2980021中文资料参数规格
技术参数

额定电压DC 250 V

额定电压AC 250 V

额定电流 6 A

触点额定电流 6 A

线圈电压 125 VDC

额定电流Max 6 A

线圈电压DC 125 V

工作温度Max 60 ℃

工作温度Min -25 ℃

额定电压 250VAC, 250VDC

额定电压DC Max 250 V

额定电压AC Max 250 V

封装参数

安装方式 DIN Rail

外形尺寸

宽度 6.2 mm

高度 94 mm

物理参数

触点材质 Silver Tin Oxide

工作温度 -25℃ ~ 60℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536490050

数据手册

在线购买2980021
型号: 2980021
描述:Modular part; Electromechanical Output Relay; 125V in; 250V; 6A out; DIN rail mnt
