24VAC/DC 10A 无锁存
通用 继电器 SPDT(1 Form C) 24VAC/DC 线圈 DIN 轨道
得捷:
RELAY GEN PURPOSE SPDT 10A 24V
立创商城:
24VAC/DC 10A 无锁存
艾睿:
Electromechanical Relay 24VDC 24VAC 10A SPDT 14x80x94mm DIN Rail PLC Relay
Allied Electronics:
Modular part; Electromechanical Output Relay; 24VDC in; 250V; 10A out; DIN rail mnt
Chip1Stop:
Electromechanical Relay 24VDC 24VAC 10A SPDT14x80x94mm DIN Rail PLC Relay
Verical:
Relay Module - PLC-RSC- 24UC/21HC
MASTER:

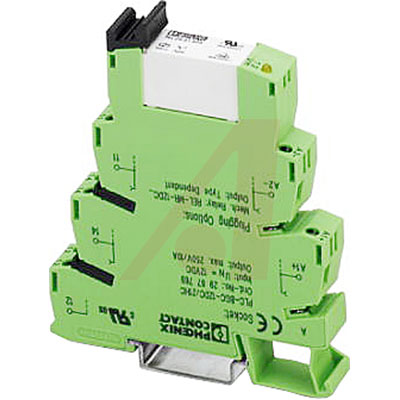

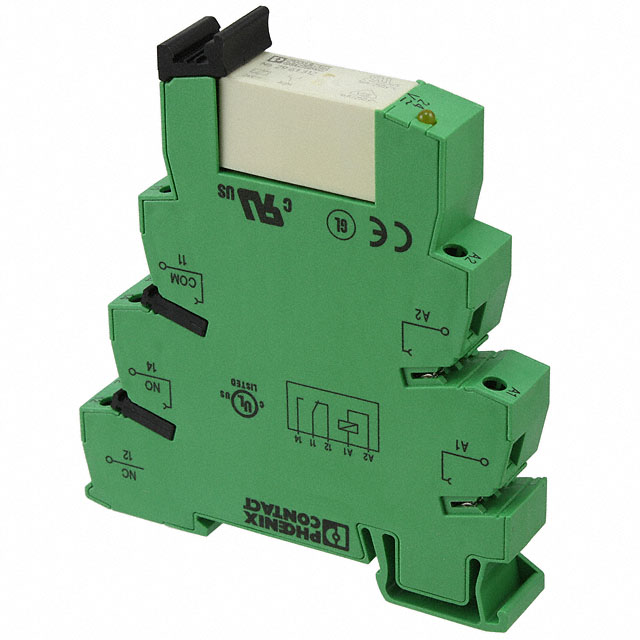

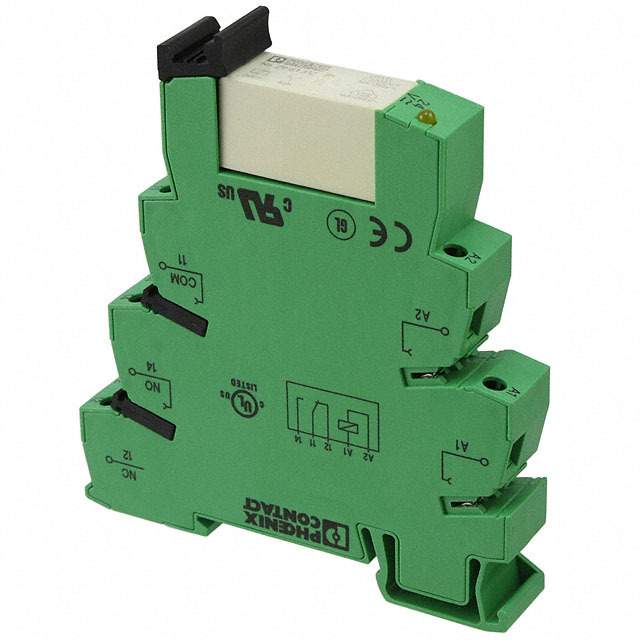

PLC-INTERFACE - consisting of PLC-BSC.../21 HC basic terminal block with screw connection and plug-in miniature relay for a high continuous current - for mounting on DIN rail NS 35/7,5 - limiting continuous current up to 10 A - 1 PDT - input voltage 24 V
Online Components:
Electromechanical Relay 24VDC 24VAC 10A SPDT14x80x94mm DIN Rail PLC Relay
Electro Sonic:
PLC-INTERFACE - consisting of PLC-BSC.../21 HC basic terminal block with screw connection and plug-in miniature relay for a high continuous ...
额定电压DC 250 V
额定电压AC 250 V
额定电流 10 A
触点额定电流 10 A
线圈电压 24VAC, 24VDC
线圈电流 17.5 mA
线圈电压AC 24 V
额定电流Max 10 A
线圈电压DC 24 V
额定功率Max 2.5 KVA
工作温度Max 60 ℃
工作温度Min -25 ℃
额定电压 250VAC, 250VDC
安装方式 DIN Rail, Screw Terminals
封装 -
长度 80 mm
宽度 94 mm
高度 94 mm
封装 -
触点材质 Silver Nickel
工作温度 -25℃ ~ 60℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
