2297345概述

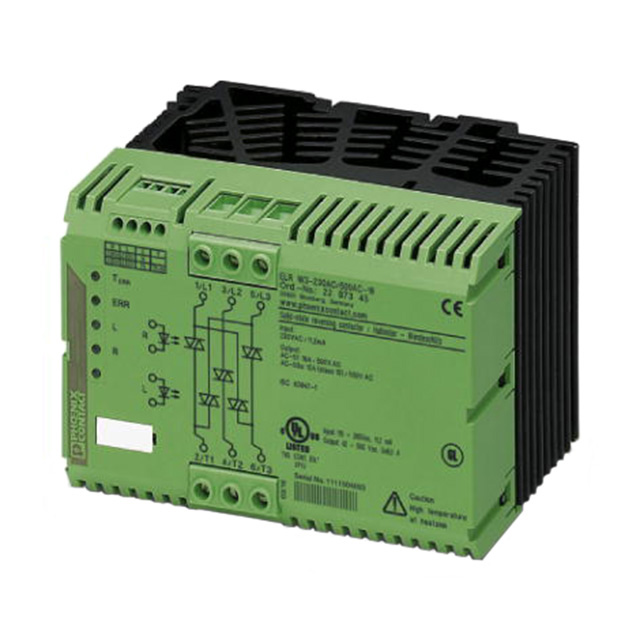

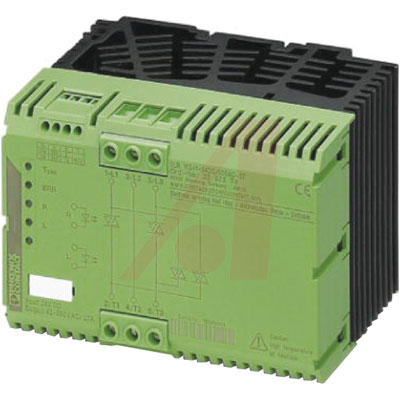

固态继电器-工业安装 ELR W3-230AC/ 500AC-16

The ELR Series solid state contactors are the latest addition to the CONTACTRON family of products. Available in both reversing and non-reversing versions and four current ratings, all versions feature surge protection, polarity protection and built-in heat sinks.


得捷:
3PHASE REVERSING CONTACTOR


贸泽:
固态继电器-工业安装 ELR W3-230AC/ 500AC-16


艾睿:
Electromechanical Relay 230VAC 16A 147.5x114.5x99mm DIN Rail Contactor Relay


Allied Electronics:
Three-phase solid-state reversing contactor with 230 V AC input; 16A Current


MASTER:
Solid state contactor 24VDC 1.9KOhm 16A 147.5x114.5x99mm DIN Rail Contactor Relay


Online Components:
Electromechanical Relay 230VAC 16A 147.5x114.5x99mm DIN Rail Contactor Relay


Electro Sonic:
Solid state contactor 24VDC 1.9KOhm 16A 147.5x114.5x99mm DIN Rail Contactor Relay


2297345中文资料参数规格
技术参数

额定电流 16 A

负载电流 16 A

输入电流 11.2 mA

工作温度Max 70 ℃

工作温度Min -25 ℃

输入电压 230 VAC

封装参数

安装方式 Screw, DIN Rail

封装 Module

外形尺寸

宽度 147.5 mm

高度 99 mm

封装 Module

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536490065

数据手册

在线购买2297345
型号: 2297345
描述:固态继电器-工业安装 ELR W3-230AC/ 500AC-16
