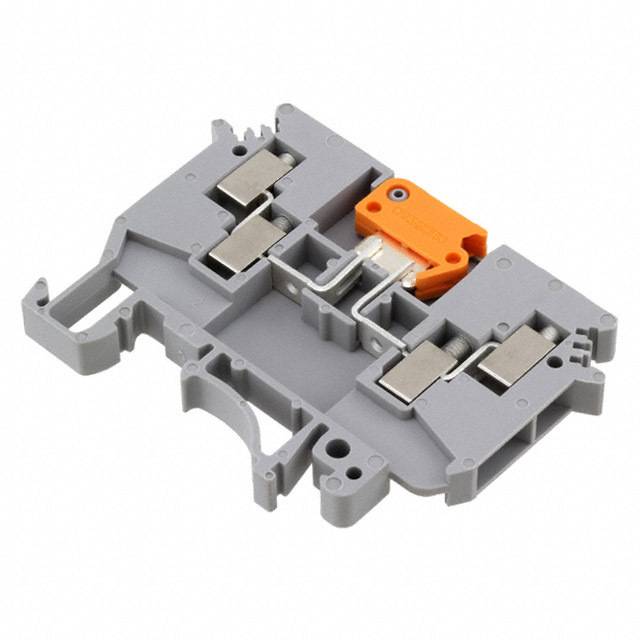

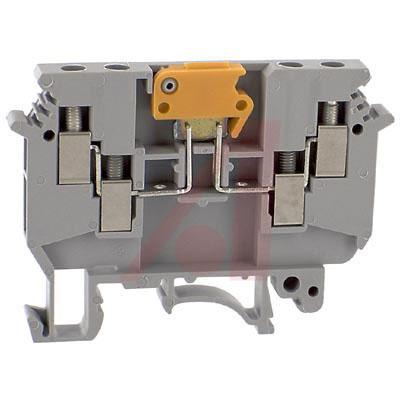

2775210

UDK双接线端子电势分配通过两个端子点个连接 桥接选择的接线端子中心 尺寸 --- W x L x H | 6.2mm x63.5mm x47mm ### 认可UL, cUL, CSA### 英式系列（Phoenix DIN 导轨端子）

UDK双

通过 Contact 的多导线端子块，可在每个端子点通过单独的接线连接多达四根导线。

### 特点和优势

• 通过两个端子点（连接两端各一个）进行电势分配 • 端子中心提供桥接选项

尺寸

---

W x L x H | 6.2mm x63.5mm x47mm

### 认可

UL, cUL, CSA

得捷:
CONN TERM BLK DISCONN 10-30AWG

欧时:
Conn; Term Blk

贸泽:
DIN Rail Terminal Blocks UDK 4-MTK-P/P

艾睿:
Conn Knife Disconnect Terminal Block F 4 POS Screw Cable Mount 16A

Allied Electronics:
Conn; Term Blk; 2; 4; 30-10; 690; 16 A; 8 kV; M 3; 0.6 Nm Min.; PA; Screw

Verical:
Conn Knife Disconnect Terminal Block F 4 POS Screw Cable Mount 16A

MASTER:
Knife disconnect terminal block - With test socket screws for insertion of test plugs - nom. voltage: 630 V - nominal current: 16 A - connection method: Screw connection - cross section: 0.2 mm² - 6 mm² - AWG: 24 - 10 - length: 63.5 mm - width: 6.2 mm - c

Online Components:
Conn Feed-Through Terminal Block F 4 POS Screw Cable Mount 16A

Electro Sonic:
Knife disconnect terminal block - With test socket screws for insertion of test plugs - nom. voltage: 630 V - ...
