2774017

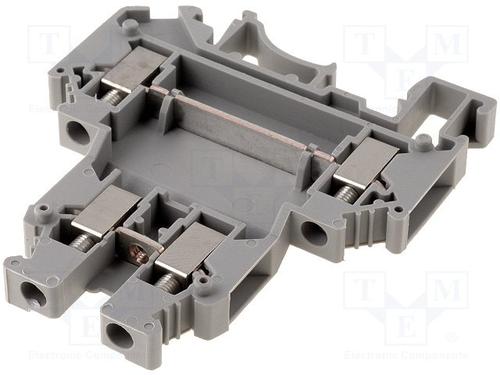

UKK-5 双层接线端子块双级端子块。横截面：0.2 mm² - 4 mm² AWG: 24 - 12 连接类型：螺钉连接 宽度：6.2 mm 颜色：灰色 安装类型：NS 35/7.5、NS 35/15、NS 32 ### 英式系列（Phoenix DIN 导轨端子）

UKK-5 双层块

双级端子块。

横截面：0.2 mm² - 4 mm²

AWG: 24 - 12

连接类型：螺钉连接

宽度：6.2 mm

颜色：灰色

安装类型：NS 35/7.5、NS 35/15、NS 32

得捷:
CONN TERM BLK FEED THRU 10-26AWG

欧时:
2774017 - Phoenix Contact 菲尼克斯 UKK5 系列 灰色 双层接线端子块

艾睿:
Get the best connections between your circuits with this 2774017 PCB terminal block from Phoenix Contact. This F connector has 4 F contacts. It has a maximum voltage rating of 500 V. This is a 4-row connector. It has a female type gender. This device has a maximum current rating of 32 A. 2774017 is housed in polyamide. This product is 56 mm long, 69.5 mm tall and 6.2 mm deep. It uses the screw termination method. Its wire is 12-24 AWG.

Allied Electronics:
Conn; Term Blk; DBL Level; Screw; 4; 24-12 AWG; Gray;

Verical:
Conn Double-Level Terminal Block F 4 POS Screw G DIN Rail/T DIN Rail 32A

MASTER:
Double-level terminal block - connection method: Screw connection - cross section: 0.2 mm² - 4 mm² - AWG: 24 - 12 - width: 6.2 mm - color: gray - mounting type: NS 35/7,5 - NS 35/15 - NS 32

Online Components:
Conn Double-Level Terminal Block F 4 POS Screw G DIN Rail/T DIN Rail 32A

Electro Sonic:
Double-level terminal block - connection method: Screw connection - cross section: 0.2 mm² - 4 mm² - AWG: 24 - ...
