2800004

2.5mm² 电线的标准高度型号和一个用于 4.0mm² 电线的双层型号 颜色：灰色 类型 | 导线规格 | V | A | 约 awg ---|---|---|---|--- 标准 | 0.2 - 2.5mm 绞合，4mm 刚性 | 300 | 10 UL，15 CSA，16 最大值 | 28-12 双层 | 0.2 - 4mm 绞合或刚性 | 300 | 12（较高），26（较低） | 28-12 ### 认可UL 认证元件，CSA 认证### 英式系列（Phoenix DIN 导轨端子）

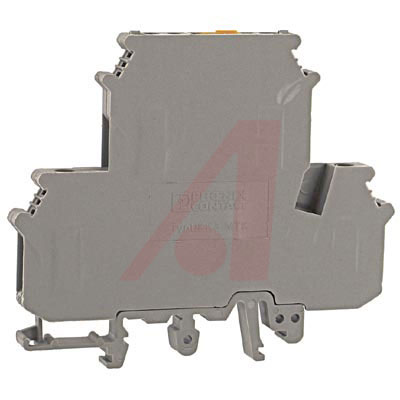

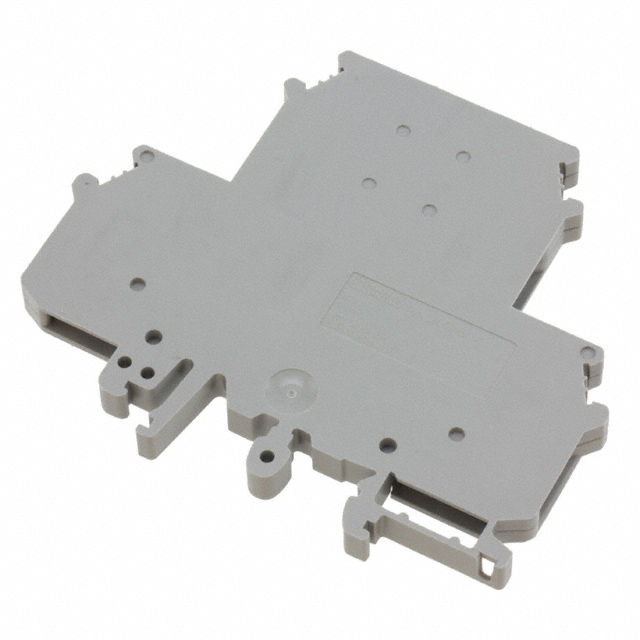

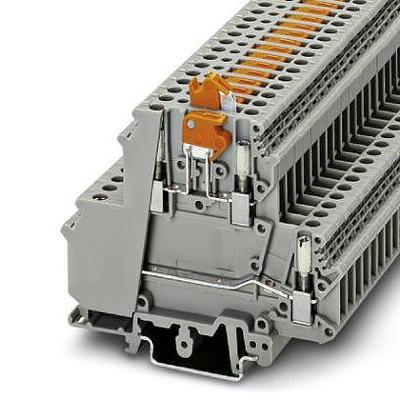

刀剥离端子

剥离端子板允许您快速找到系统故障，并允许在零电压条件下执行检查工作。

提供一个用于 2.5mm² 电线的标准高度型号和一个用于 4.0mm² 电线的双层型号

颜色：灰色

类型 | 导线规格 | V | A | 约 awg

---|---|---|---|---

标准 | 0.2 - 2.5mm 绞合，4mm 刚性 | 300 | 10 UL，15 CSA，16 最大值 | 28-12

双层 | 0.2 - 4mm 绞合或刚性 | 300 | 12（较高），26（较低） | 28-12

### 认可

UL 认证元件，CSA 认证

得捷:
CONN TERM BLK DISCONN 12-26AWG

欧时:
2800004 - Phoenix Contact 菲尼克斯 UKK 系列 灰色 刀剥离端子块

贸泽:
DIN导轨式接线端子 UKK 5-MTK-P/P

艾睿:
This feed-through terminal block 2800004 PCB terminal block developed by Phoenix Contact will mend different gage wires together. This F connector has 4 F contacts. This is a 4-row connector. It has a maximum voltage rating of 400 V. It has a female type gender. 2800004 is housed in polyamide. This device has a maximum current rating of 26 A. It uses the screw termination method. Its wire is 12-24 AWG. This product is 80 mm long, 76 mm tall and 6.2 mm deep.

Allied Electronics:
Conn; Term Blk; 2; 4; 26-12; 400; 26 A; 6 kV; M 3; 0.6 Nm Min.; PA; Screw

Verical:
Conn Feed-Through Terminal Block F 4 POS Screw Cable Mount 26A

MASTER:
Knife disconnect terminal block - With test socket screws for insertion of test plugs - nom. voltage: 400 V - nominal current: 26 A - connection method: Screw connection - cross section: 0.2 mm² - 4 mm² - AWG: 24 - 12 - length: 80 mm - width: 6.1 mm - col

Online Components:
Conn Feed-Through Terminal Block F 4 POS Screw Cable Mount 26A

Electro Sonic:
Knife disconnect terminal block - With test socket screws for insertion of test plugs - nom. voltage: 400 V - ...
