2302065概述

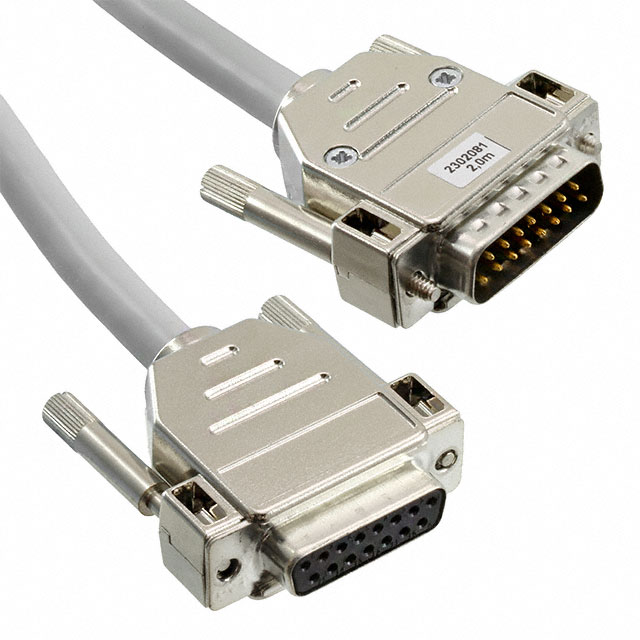

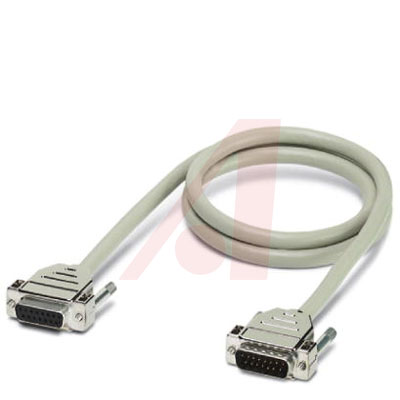

Cable Assembly D-Sub 1m 24AWG D-Sub to D-Sub 15 to 15POS M-F

**DSUB Shielded Round Cable Sets**

Range of shielded round cable sets designed for use within industrial controllers with various DSUB connections


得捷:
CABLE ASSY DB15 SHIELDED GRAY 1M


欧时:
Cable


贸泽:
D-Sub Cables D-SUB 15 /B/S/100


e络盟:
CABLE, CABLE-D15SUB/B/S/100/KONFEK/S


艾睿:
Cable Assembly D-Sub 1m 24AWG D-Subminiature to D-Subminiature 15 to 15 POS M-F


Allied Electronics:
D-Sub Miniature 1m Female; Male Cable for use with Controller


Chip1Stop:
Cable Assembly D-Sub 1m 24AWG D-Subminiature to D-Subminiature 15 to 15 POS M-F


Verical:
Cable Assembly Round 1m 24AWG D-Sub to D-Sub 15 to 15 POS M-F


Online Components:
Cable Assembly D-Sub 1m 24AWG D-Subminiature to D-Subminiature 15 to 15 POS M-F


Electro Sonic:
Assembled shielded round cable; connection 1: D-SUB socket strip 1x 15-position; connection 2: D-SUB pin strip 1x 15-position; cable length: ...


2302065中文资料参数规格
技术参数

触点数 15

线规 24.0 AWG

额定电流 2 A

针脚数 15

额定电流Max 2 A

工作温度Max 50 ℃

工作温度Min -20 ℃

额定电压 125 V

封装参数

封装 100

外形尺寸

长度 1.00 m

封装 100

电缆长度 1 m

物理参数

颜色 Gray

工作温度 -20℃ ~ 50℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8544429000

数据手册

在线购买2302065
型号: 2302065
制造商: Phoenix 菲尼克斯
描述:Cable Assembly D-Sub 1m 24AWG D-Sub to D-Sub 15 to 15POS M-F
