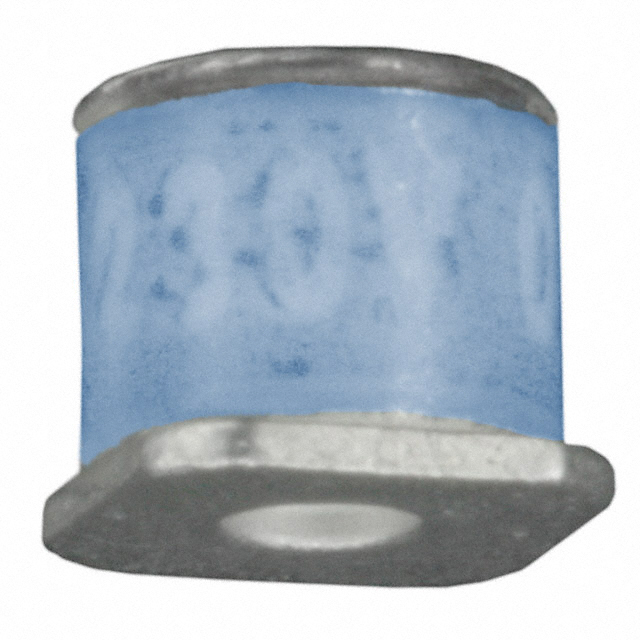

2035-09-SM-RP

精密气体放电管浪涌保护器 Precision Gas Discharge Tube Surge Protector

Is your electrical equipment located in an outdoor structure? Then this gas discharge tube from Bourns will protect it from transient overvoltage events. Its DC sparkover voltage is 90 V with a tolerance of ±20%, and its impulse discharge current 8x20 us, 10 Hits is 10 A. This GDT has an operating temperature range of -55 °C to 85 °C. It has 2 terminals/electrodes. The 2035-09-SM-RP GDT has a solder pad termination style. Mount your GDT on a printed circuit board using surface mount technology to produce the most effective results. This product is 4.4 mm long, 5 mm tall and 5 mm deep. This part has a pitch of 3.9 mm.
