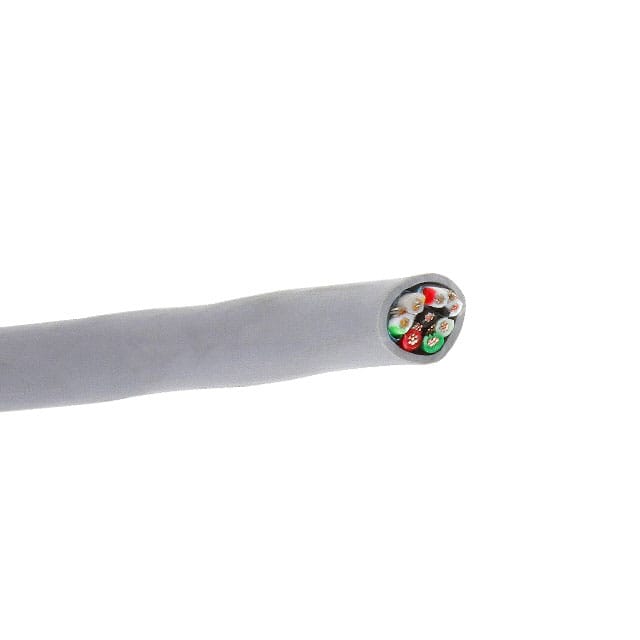

Cable; 4; 20AWG; 7/28; Aluminum/Polyester; 0.34in.; 0.015in.; 0.03in.; PVC
Multipair Individually Shielded Data Cable, 400 V, -20 to +80 °C Operating Temperature
PP/PVC individually shielded. Stranded tinned copper conductors, aluminum/polyester tape shield. PVC jacket. -20°C to 105°C, 400 volt. UL Type CM, CSA PCC FT4.
得捷:
MULTI-PAIR 8CON 20AWG SLATE 100"
贸泽:
Multi-Paired Cables 20AWG 4PR C SHIELD 100ft SPOOL SLATE
Allied Electronics:
Cble; Paired; 4 Prs; 20 AWG; 7x28; Individual Shld; PP Ins; Gry; PVC Jkt; TC
Newark:
# ALPHA WIRE 2467C SL005 Multipair Shielded Cable, Communication, Slate, 4 Pair, 20 AWG, 0.56 mm², 100 ft, 30.5 m
线规 20 AWG
额定电压DC 400 V
屏蔽 Yes
芯数 8
额定电压 300 V
长度 30.5 m
颜色 Slate
绝缘材质 Polypropylene
工作温度 -20℃ ~ 75℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Bulk
制造应用 Sensing & Instrumentation, Computers & Computer Peripherals, Audio, Security, Consumer Electronics, Communications & Networking, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2467C SL005 Alpha Wire | 当前型号 | 当前型号 |
5020/15C SL005 Alpha Wire | 功能相似 | 2467C SL005和5020/15C SL005的区别 |
2467C SL002 Alpha Wire | 功能相似 | 2467C SL005和2467C SL002的区别 |
2467C SL001 Alpha Wire | 功能相似 | 2467C SL005和2467C SL001的区别 |
