2035-09-B

GDT 90V 20% 5kA THROUGH HOLE

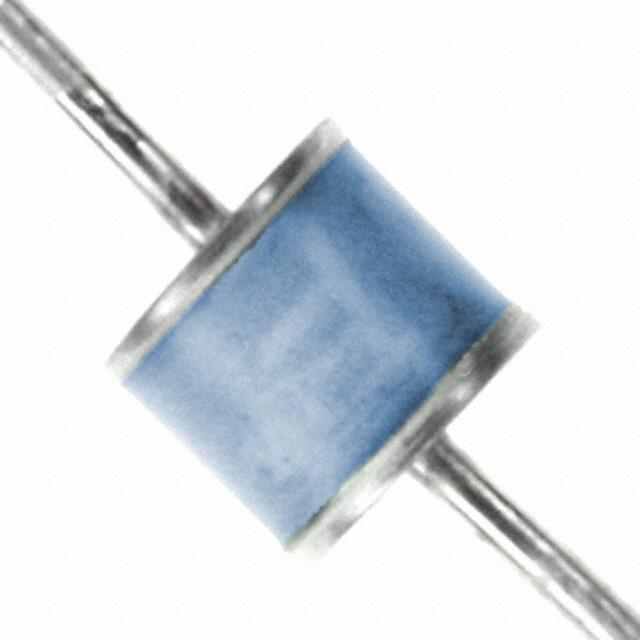

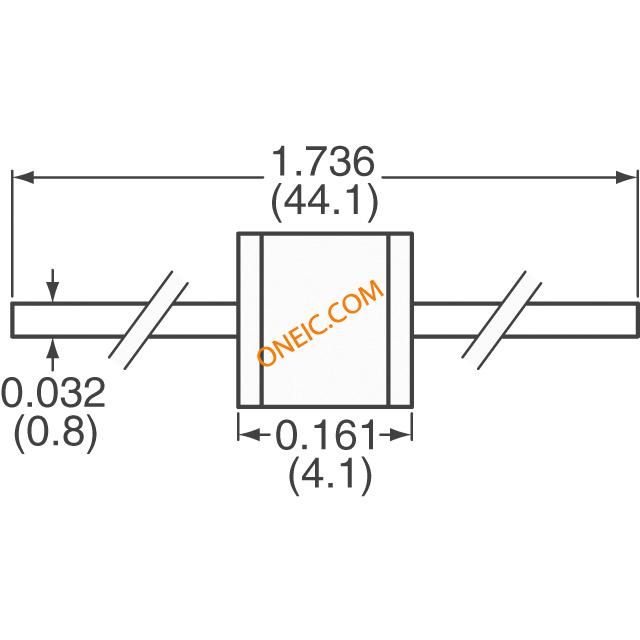

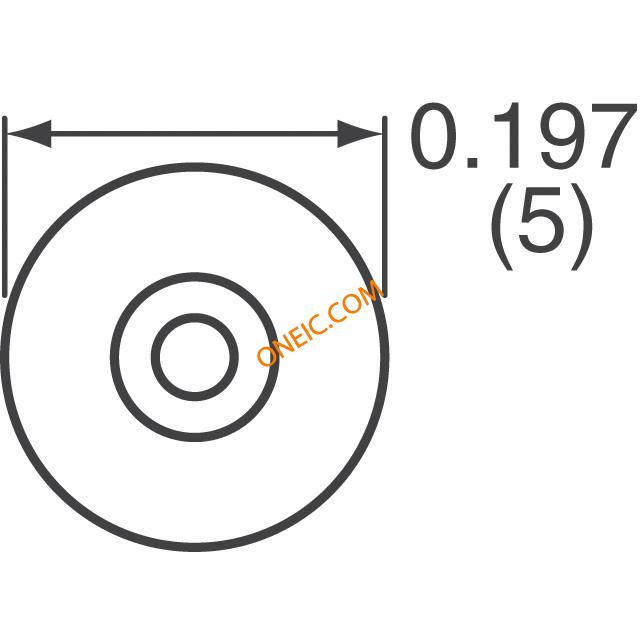

Does your project need protection from potentially damaging transient overvoltage events? Then this gas discharge tube from Bourns is absolutely essential! Its DC sparkover voltage is 90 V with a tolerance of ±20%, and its impulse discharge current 8x20 us, 10 Hits is 10 A. This GDT has an operating temperature range of -55 °C to 85 °C. It has 2 terminals/electrodes. The 2035-09-B GDT has an axial termination style. This part has a lead diameter of 0.8 mm. This product is 4.1 mm long, 5 mm tall and 5 mm deep.
