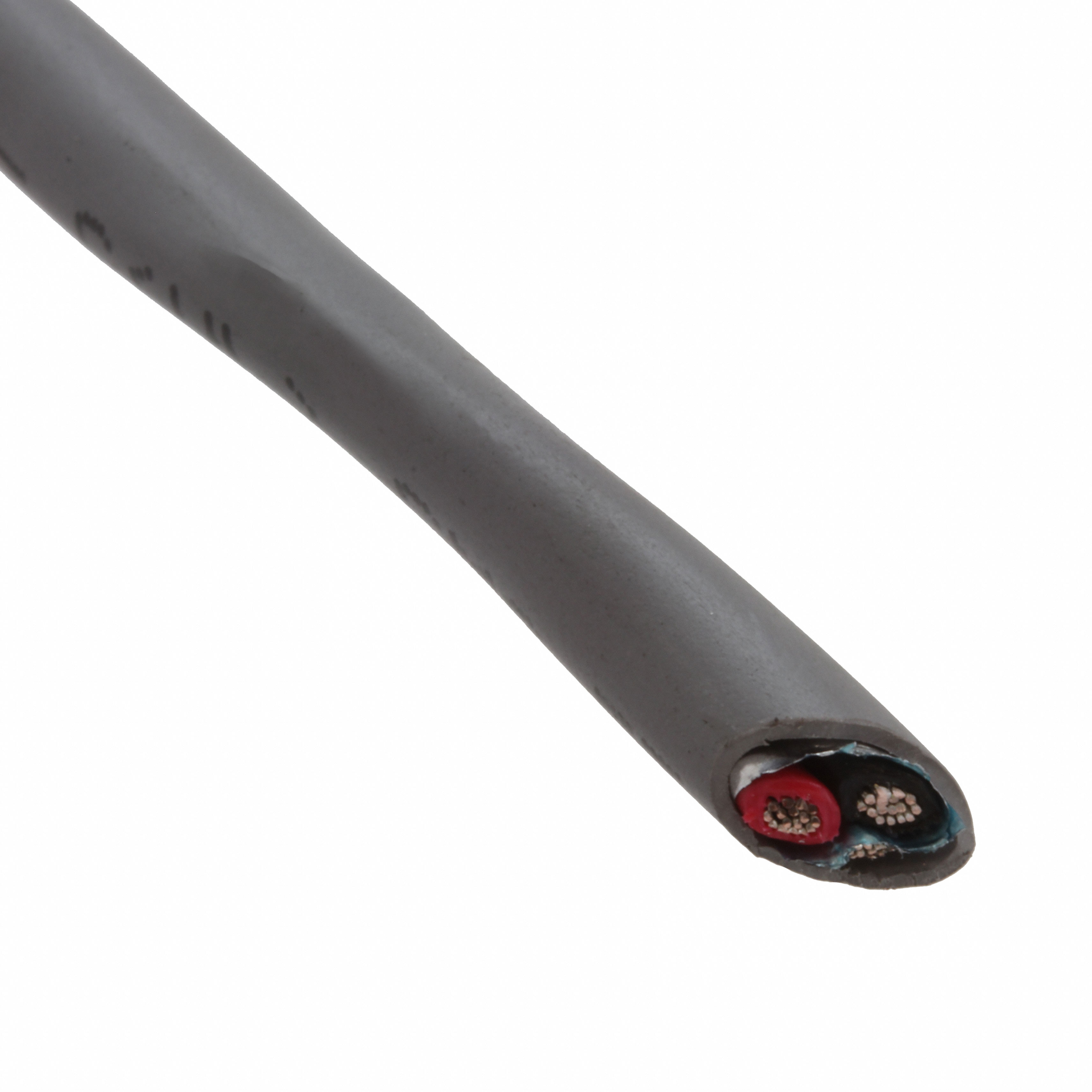

ALPHA WIRE 2421C SL001 Multiconductor Shielded Cable, Control, Slate, 2Conductor, 18AWG, 1000Ft, 304.8m
The is a 2-core Shielded Cable with tinned copper conductor and a flame-retardant HDPE insulator. This multi-core cable comes with a slate PVC jacket, aluminium/Mylar tape foil shield and foil facing outward.
- .
- 33lbs Maximum pull tension
- .
- 56pf/ft at 1kHz Nominal ground capacitance
- .
- 0.18µH/ft Nominal inductance
线规 18 AWG
额定电压DC 300 V
屏蔽 Yes
芯数 2
工作温度Max 75 ℃
额定电压 300 V
长度 304.8 m
颜色 Black, Natural
绝缘材质 Polyethylene
工作温度 -20℃ ~ 75℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Coil
制造应用 Security, Communications & Networking, Audio, Portable Devices, Sensing & Instrumentation, Consumer Electronics, Automation & Process Control, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2421C SL001 Alpha Wire | 当前型号 | 当前型号 |
2421C SL002 Alpha Wire | 完全替代 | 2421C SL001和2421C SL002的区别 |
2421C SL005 Alpha Wire | 功能相似 | 2421C SL001和2421C SL005的区别 |
5855/7 BR001 Alpha Wire | 功能相似 | 2421C SL001和5855/7 BR001的区别 |
