2036-07-SMLF

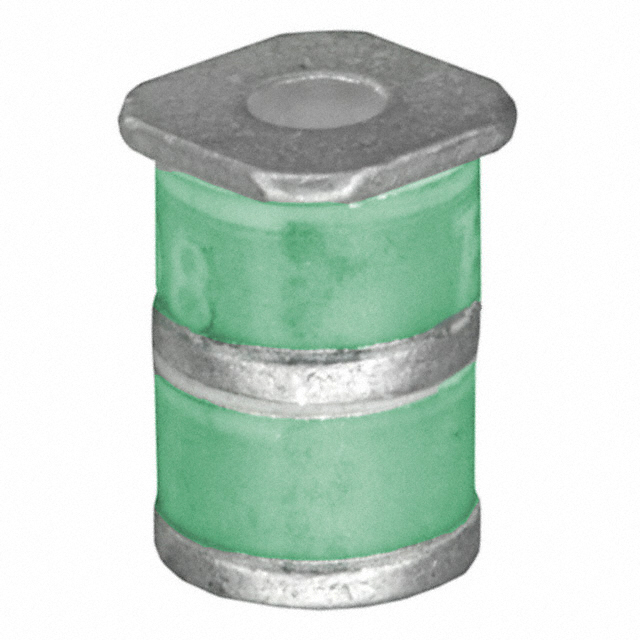

BOURNS  2036-07-SMLF  气体放电管 GDT, Miniature 3-Pole, 75 V, 3终端SMD, 20 kA, 525 V

The is a 3-pole miniature Gas Discharge Tube for telecommunications.

.

Balanced Mini-TRIGARD™

.

5mm Diameter, 7.5mm long

.

UL recognized

.

Test methods per ITU-T CCITT K.12, IEEE C62.31

立创商城:
2036-07-SMLF

e络盟:
气体放电管 GDT, Miniature 3-Pole, 75 V, 3终端SMD, 20 kA, 525 V

艾睿:
Bourns&s; 2036-07-SMLF gas discharge tube responds quickly to transient overvoltage events. Its DC sparkover voltage is 75 V with a tolerance of ±20%, and its impulse discharge current 8x20 us, 10 Hits is 10 A. This GDT has an operating temperature range of -55 °C to 85 °C. It has 3 terminals/electrodes. The 2036-07-SMLF GDT has a solder pad termination style. Mount your GDT on a printed circuit board using surface mount technology to produce the most effective results. This product is 7.3 mm long, 5 mm tall and 5 mm deep.

安富利:
Gas Discharge Tubes - GDTs / Gas Plasma Arrestors Sparkover100V/s 75V

Chip1Stop:
Gas Discharge Tubes 75VDC 10KADC 10AAC 2pF Solder Pad SMD

Verical:
Gas Discharge Tubes 75VDC 10KADC 10AAC 2pF Solder Pad SMD

Newark:
# BOURNS  2036-07-SMLF  Gas Discharge Tube GDT, Precision, 75 V, 3 Terminal SMD, 20 kA, 525 V

MASTER:
Gas Discharge Tubes 75VDC 10kADC 10AAC 2pF Solder Pad SMD

Electro Sonic:
Gas Discharge Tubes 75VDC 10kADC 10AAC 2pF Solder Pad SMD
