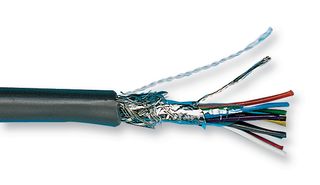

ALPHA WIRE 2256/4 SL005 Multiconductor Shielded Cable, Control, Slate, 4Conductor, 20AWG, 100Ft, 30.5m
The is a 4-core Shielded Cable with tinned copper conductor and a PVC insulator. This multi-core cable comes with a slate PVC jacket and bare copper spiral shield 95% coverage.
- .
- 36lbs Maximum pull tension
- .
- 79pf/ft at 1kHz Nominal ground capacitance
- .
- 0.19µH/ft Nominal inductance
线规 20 AWG
额定电压DC 300 V
屏蔽 Yes
芯数 4
额定电压 300 V
长度 30.5 m
颜色 Gray
工作温度 -20℃ ~ 80℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Consumer Electronics, Portable Devices, Communications & Networking, Audio, Automation & Process Control, Security, Computers & Computer Peripherals, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2256/4 SL005 Alpha Wire | 当前型号 | 当前型号 |
5854 BK001 Alpha Wire | 功能相似 | 2256/4 SL005和5854 BK001的区别 |
5060C SL005 Alpha Wire | 功能相似 | 2256/4 SL005和5060C SL005的区别 |
2256/4 SL002 Alpha Wire | 功能相似 | 2256/4 SL005和2256/4 SL002的区别 |
