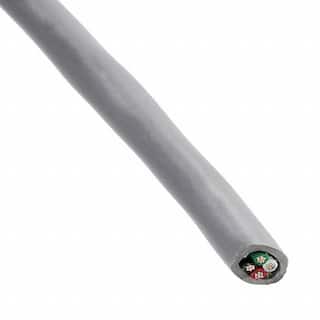

ALPHA WIRE 2414C SL001 Multiconductor Shielded Cable, Control, Slate, 4Conductor, 20AWG, 1000Ft, 304.8m
PVC Jacket Foil Shielded Multiconductor Cable, 0.016 in. Insulation, 0.020 in. Jacket Thickness
UL2092, 2093, 2094, UL Type CM, CSA PCC FT4- .
- *
- .
- * Stranded tinned copper. ** Insulation:** Color coded polyethylene 0.016". ** Shield:** Aluminum/polyester tape 100% coverage. ** Jacket:** Gray polyvinylchloride. ** Operating Temperature Range:** +60°C.
Foil faced outward shield, stranded tinned copper drain wire.
线规 20 AWG
额定电压DC 300 V
屏蔽 Yes
芯数 4
工作温度Max 75 ℃
工作温度Min -20 ℃
额定电压Max 300 VAC
额定电压 300 V
长度 304.8 m
电缆长度 304.8 m
颜色 Gray
绝缘材质 Polyethylene
工作温度 -20℃ ~ 75℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Bulk
制造应用 Communications & Networking, Automation & Process Control, Sensing & Instrumentation, Consumer Electronics, Audio, Portable Devices, Security, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
2414C SL001 Alpha Wire | 当前型号 | 当前型号 |
2414C SL002 Alpha Wire | 功能相似 | 2414C SL001和2414C SL002的区别 |
5855/7 BK001 Alpha Wire | 功能相似 | 2414C SL001和5855/7 BK001的区别 |
