2052-40-SM-RPLF

BOURNS  2052-40-SM-RPLF  气体放电管 GDT, Light Duty 3-Electrode, 2052系列, 400 V, 3终端SMD, 5 kA, 800 V

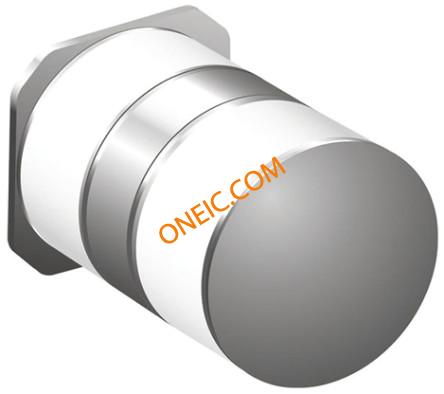

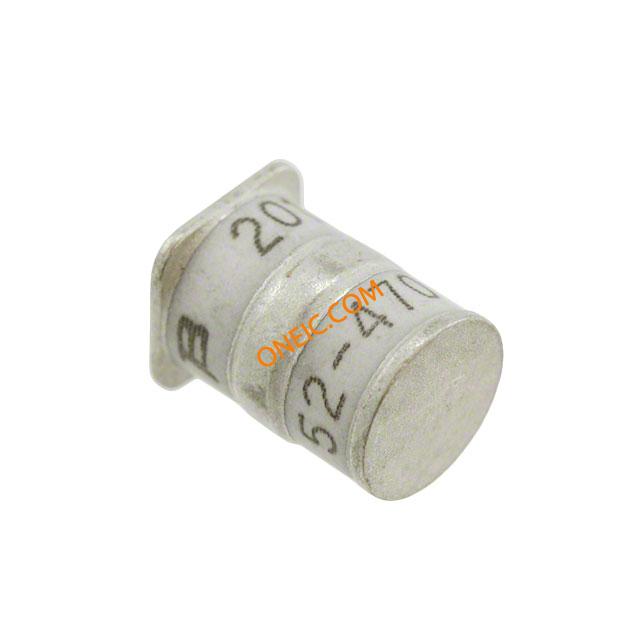

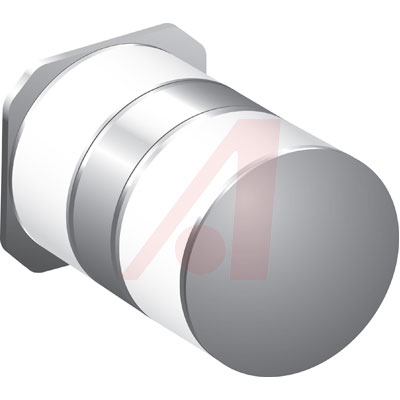

This gas discharge tube from Bourns is the perfect surge arrester for any circuit. Its DC sparkover voltage is 400 V with a tolerance of ±20%, and its impulse discharge current 8x20 us, 10 Hits is 1 A. This item should be stored between -40 °C and 115 °C. This GDT has a minimum operating temperature of -30 °C and a maximum of 85 °C. It has 3 terminals/electrodes. The 2052-40-SM-RPLF GDT has a solder pad termination style. Mount your GDT on a printed circuit board using surface mount technology to produce the most effective results. This product is 7.2 mm long, 5 mm tall and 5 mm deep.
