2794987

Conn; Term Blk; DIN Rail; 1; 24-12AWG; 6.2mm W; Black; 110VAC Nom

Plug-In Bridge for Cross-Connections in the Terminal Center, Red Color

* UL Listed, CSA Certified

12 AWG wire size

得捷:
CONN TERM BLK FEED THRU 10-26AWG

艾睿:

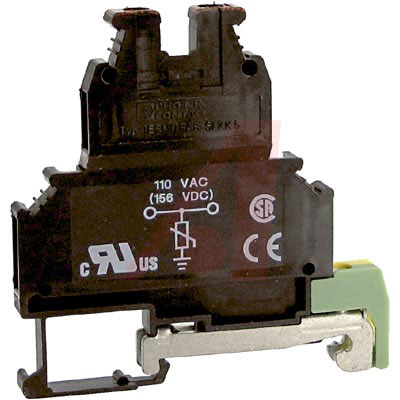

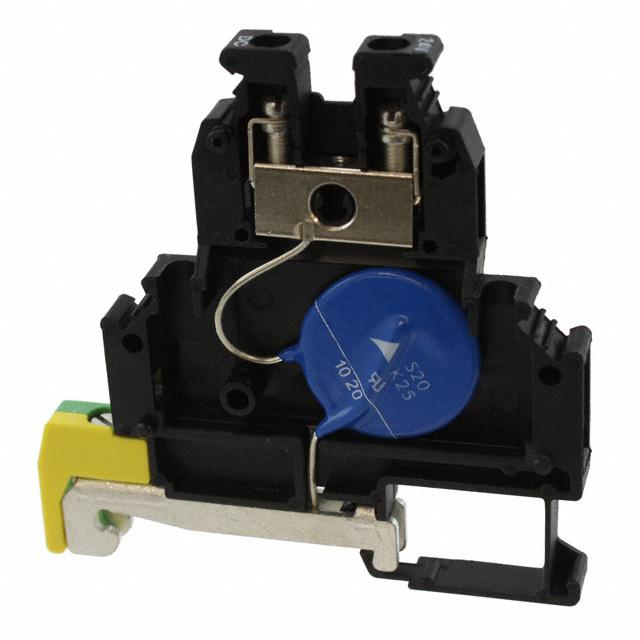

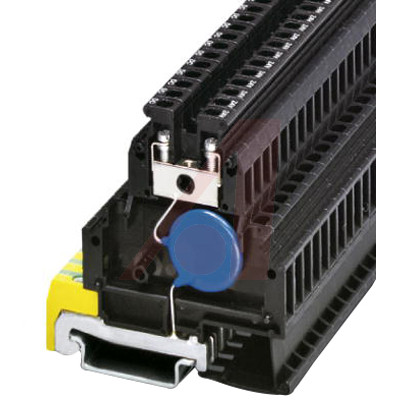

Keep your connections strong with this din rail 2794987 PCB terminal block from Phoenix Contact utilizing clamps and screws. This F connector has a single F contact. It has a female type gender. This is a 1-row connector. It has a maximum voltage rating of 130 VAC. It has a straight body orientation. 2794987 is housed in polyamide. This device has a maximum current rating of 32 A. It uses the screw termination method. Its wire is 12-24 AWG. This product is 66.5 mm long, 69.5 mm tall and 6.2 mm deep. This quick disconnect terminal has an operating temperature of -40 to 85 °C.

Allied Electronics:
Terminal Block; 12 AWG⁄ kcmil Max. Conductor Cross Section; Black; 1; ;

Verical:
Surge Suppressor F 1 POS Screw ST T DIN Rail 32A

MASTER:
Surge Suppressor F 1 POS Screw ST T DIN Rail 32A

Online Components:
Conn DIN Rail F 1 POS Screw ST T DIN Rail 32A

Electro Sonic:
Surge Suppressor F 1 POS Screw ST T DIN Rail 32A
