2038-80-SM-RPLF

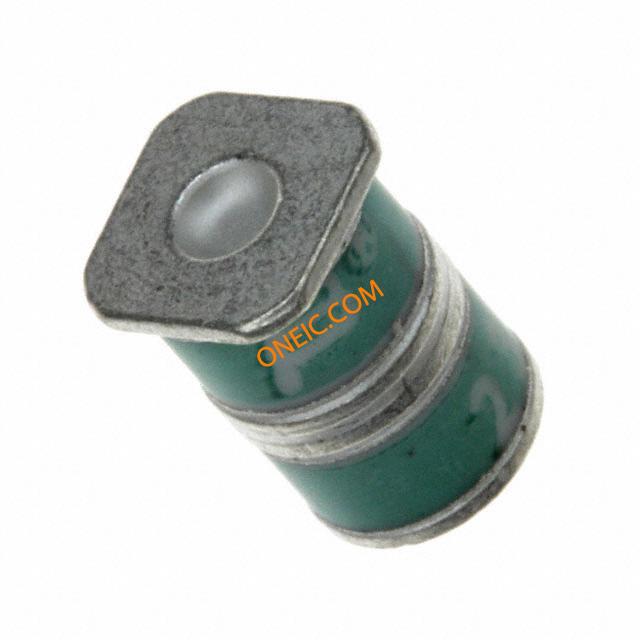

Surge Arrestor 3-Electrode Gas Discharge Tube 800VDC 10kA SMD T/R

Ideal for outdoor systems this gas discharge tube from Bourns will dissipate voltage transient to safely get rid of voltage spikes. Its DC sparkover voltage is 800 V with a tolerance of ±20%, and its impulse discharge current 8x20 us, 10 Hits is 10 A. This GDT has an operating temperature range of -40 °C to 90 °C. It has 3 terminals/electrodes. The 2038-80-SM-RPLF GDT has a solder pad termination style. Mount your GDT on a printed circuit board using surface mount technology to produce the most effective results. This part has a pitch of 3.3 mm. This product is 7.3 mm long, 5 mm tall and 5 mm deep.
