2130172概述

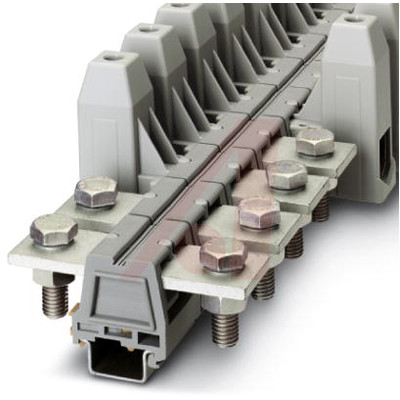

Universal terminal block w/screw conn; AWG: 2 - 4/0; W:40mm; gray; UHV 95-KH/KH

Universal terminal block with screw connection, cross section: 50 - 150 mm2, width: 46 mm, color: gray

**Features:**

* The UHV ... high-current connectors are available in several versions

* Versions are available with a cable lug or direct connection and there is a mixed version of both connection methods

* The comprehensive range of accessories, such as the connection rail for cross connection, ensures safe and user-friendly wiring of conductors up to 240 mm2


得捷:
CONN TERM BLK FEED THRU 4/0-2AWG


Allied Electronics:
Universal terminal block w/screw conn; AWG: 2 - 4/0; W:40mm; gray; UHV 95-KH/KH


2130172中文资料参数规格
技术参数

线规 35mm² ~ 95mm²

额定电流 232 A

易燃性等级 UL 94 V-2

针脚数 2

额定电压 1 kV

封装参数

安装方式 DIN Rail

外形尺寸

长度 118.5 mm

宽度 40 mm

物理参数

颜色 Gray

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买2130172
型号: 2130172
描述:Universal terminal block w/screw conn; AWG: 2 - 4/0; W:40mm; gray; UHV 95-KH/KH
