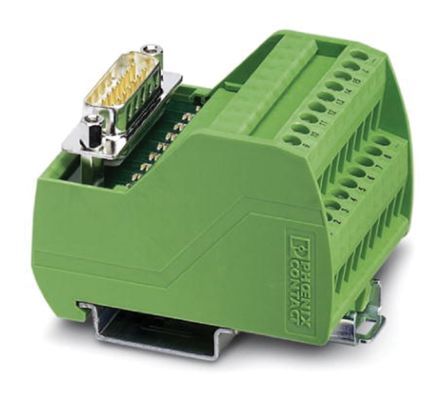

2322142图片2
2322142图片3

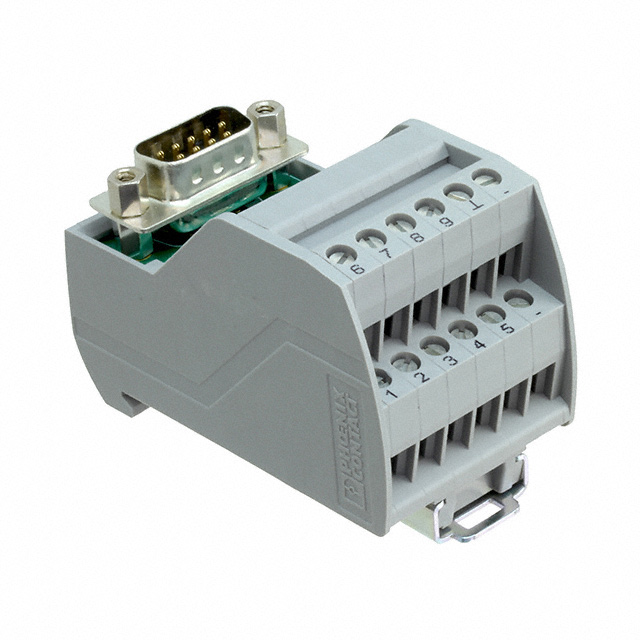

2322142图片4
2322142图片5
2322142图片6
2322142图片7
2322142图片8
2322142概述

Phoenix Contact 2322142 DIN导轨 接口继电器模块

接线板 - 接口模块 至


得捷:
INTERFACE MOD DSUB MALE 9POS


欧时:
Interface Relay Module 2322142


贸泽:
接线端子板接口模块 VIP2/SC/D 9SUB/M/LED


艾睿:
D-Subminiature/Terminal Blocks M/F 9 POS


Allied Electronics:
VARIOFACE mod; screw conn; D-Submini pin strip; mnting on NS35; w/LED; 9-pos


Verical:
VARIOFACE module, with screw connection and D-Subminiature pin strip, for mounting on NS 35 rails, with LED,9-pos.


MASTER:
VARIOFACE module - with screw connection and D-Subminiature pin strip - for mounting on NS 35 rails - with LED - 9-pos.


Online Components:
D-Subminiature/Terminal Blocks M/F 9 POS


Electro Sonic:
VARIOFACE module - with screw connection and D-Subminiature pin strip - for mounting on NS 35 rails - with LED ...


2322142中文资料参数规格
技术参数

触点数 9

线规 12AWG ~ 24AWG

针脚数 9

触点额定电流 2.5 A

工作温度Max 50 ℃

工作温度Min -20 ℃

额定电压Max 24 VDC

额定电压 24 VDC

封装参数

安装方式 DIN Rail

外形尺寸

长度 34.70 mm

宽度 34.7 mm

高度 65.5 mm

物理参数

颜色 Green

工作温度 -20℃ ~ 50℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买2322142
型号: 2322142
描述:Phoenix Contact 2322142 DIN导轨 接口继电器模块
