2463C SL001

Cable; 4; 22AWG; 7/30; Aluminum/Polyester; 0.23in.; 0.008in.; 0.019in.; PVC

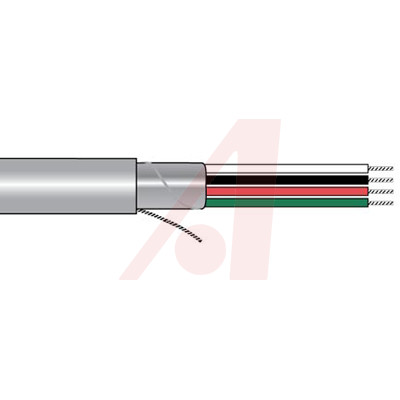

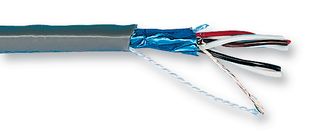

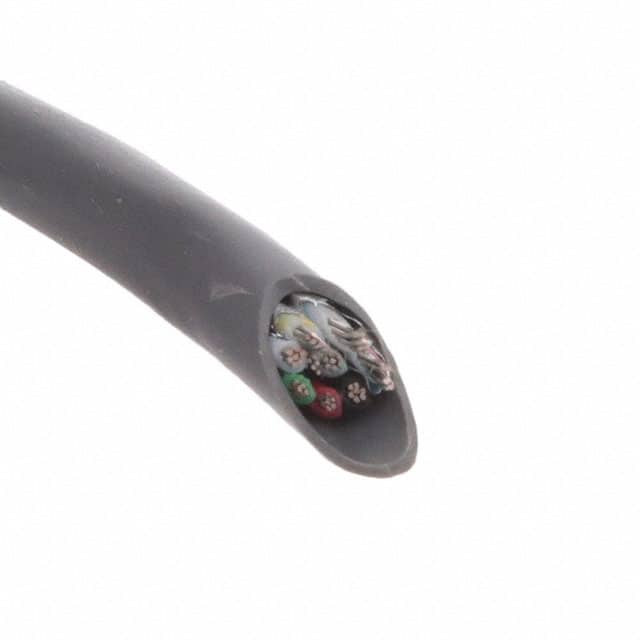

The is a 1000ft 4-pair screened Communication and Control Cable with stranded tinned copper conductors and polypropylene insulation. The cable has aluminium/polyester foil shield with 25% minimum overlap, that goes beyond the ordinary conditions to satisfy rigorous requirements of EMI performance, transmission distances, flexibility and temperature extremes.

.

234lb Maximum pull tension

.

53R Characteristic impedance

.

29pf/ft at 1kHz Mutual capacitance nominal

.

0.17µH/ft Nominal inductance

.

-20 to 75°C Temperature range
