2281092概述

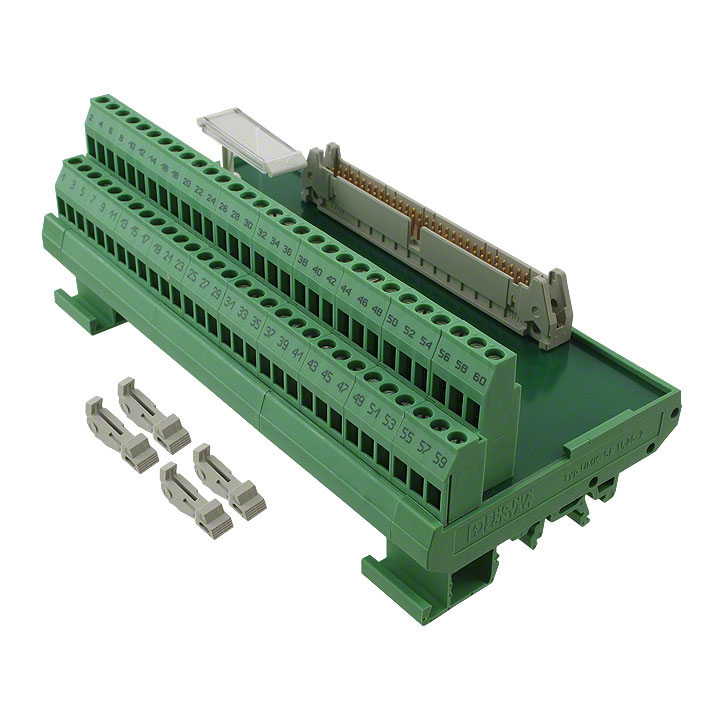

CONN VARIOFACE MODULE 60POS

**FLKM Varioface Passive Interface Module**

Contact FLKM passive interface modules for interlinking a selection of well known ranges including Siemens Simatic, Modicon TSX Quantum. This also includes series-specific labeling to uniform installlation


得捷:
INTERFACE MOD HDR 60POS 12-24AWG


贸泽:
Terminal Block Interface Modules FLKM 60


艾睿:
Make perfect connections using this varioface module 2281092 connector accessory from Phoenix Contact that will work for various wire types. This part has a minimum operating temperature of -20 °C and a maximum of 50 °C.


Allied Electronics:
M3 Screw Male Interface Module for use with NS 32, NS 35/7.5


MASTER:
VARIOFACE module, with screw connection and flat-ribbon cable connector


Online Components:
Conn VARIOFACE Module 60 POS


Electro Sonic:
VARIOFACE module, with screw connection and flat-ribbon cable connector


2281092中文资料参数规格
技术参数

触点数 60

线规 12AWG ~ 24AWG

额定电流 1 A

针脚数 60

触点额定电流 1 A

额定电流Max 1 A

工作温度Max 50 ℃

工作温度Min -20 ℃

额定电压Max 125 V

额定电压 60 VDC

封装参数

安装方式 DIN Rail

外形尺寸

长度 157.51 mm

宽度 56.3 mm

高度 58.5 mm

物理参数

颜色 Green

工作温度 -20℃ ~ 50℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536904000
