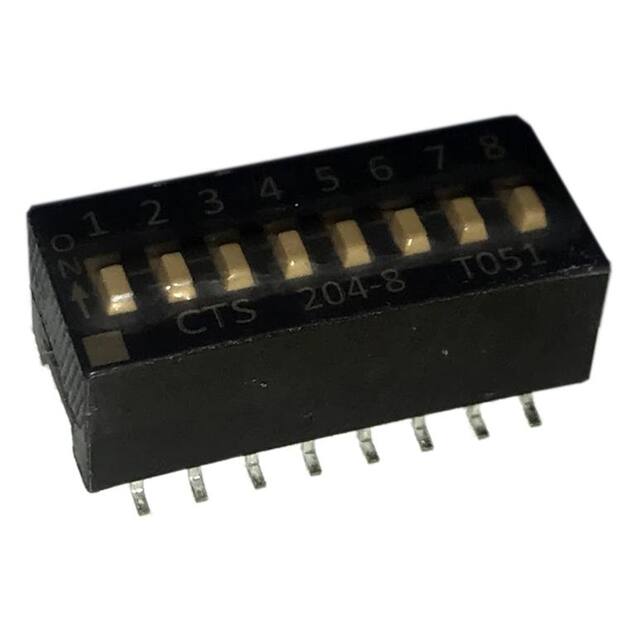

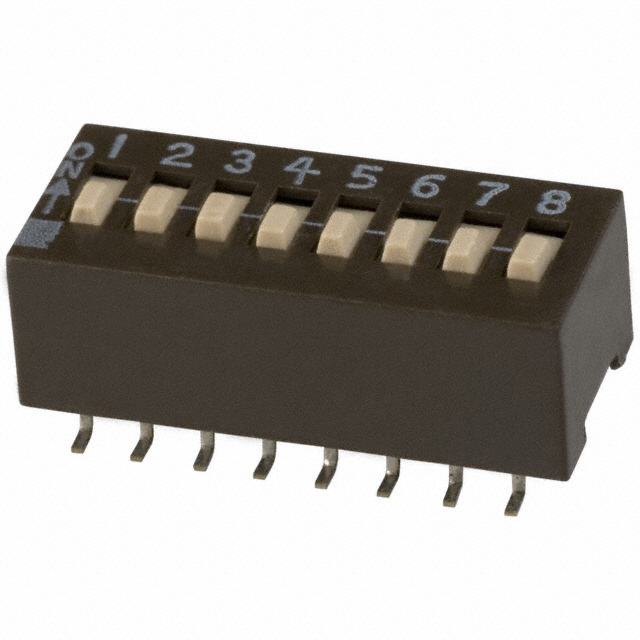

204 系列 多功能 单刀单掷 8 位置 表面贴装 DIP 开关
is manufactured by Electrocomponents and is categorized in the DIP Switches category. 204-8ST is described as SWITCH SLIDE DIP SPST 50MA 24V. Perfect Parts is a supplier of Switches and other Electromechanicals.
得捷:
SWITCH SLIDE DIP SPST 50MA 24V
立创商城:
204-8ST
贸泽:
DIP Switches / SIP Switches SPST 8 switch sections
艾睿:
Switch DIP OFF ON SPST 8 Raised Slide 0.05A 24VDC Gull Wing 5000Cycles 2.54mm SMD Tube
安富利:
Switch DIP OFF ON SPST 8 Raised Slide 0.05A 24VDC Gull Wing 2.54mm SMD Tube
Chip1Stop:
Switch DIP OFF ON SPST 8 Raised Slide 0.05A 24VDC Gull Wing 2.54mm SMD Tube
Verical:
Switch DIP OFF ON SPST 8 Raised Slide 0.05A 24VDC Gull Wing 5000Cycles 2.54mm SMD Tube
Electro Sonic:
Switch DIP OFF ON SPST 8 Raised Slide 0.05A 24VDC Gull Wing 5000Cycles 2.54mm SMD Tube
额定电压DC 24 V
接触器类型 Standard
额定电流 50 mA
绝缘电阻 1000 MΩ
方向 Vertical
触点类型 SPST
针脚数 8
接触电阻 50 mΩ
额定电流Max 0.05A @24VDC
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Surface Mount
封装 -
引脚间距 2.54 mm
长度 22.5 mm
宽度 10.4 mm
高度 10.14 mm
封装 -
引脚间距 2.54 mm
触点材质 Copper Alloy
工作温度 -55℃ ~ 85℃
产品生命周期 10000 Cycles
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
