206-5

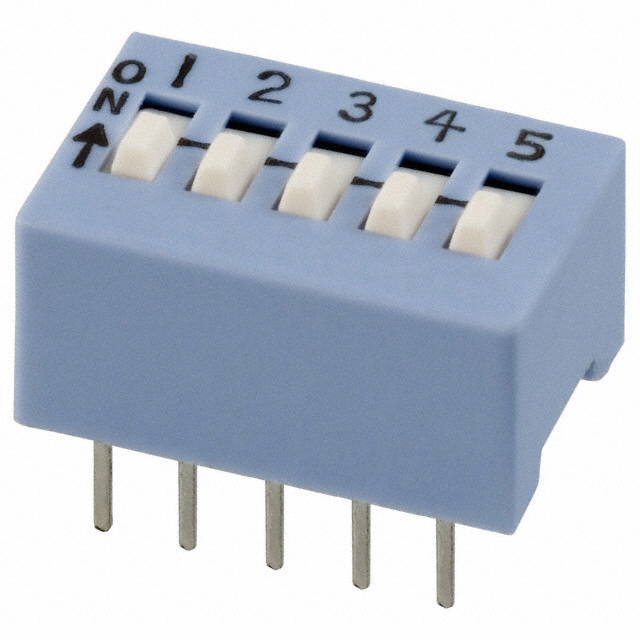

206 系列 多功能 单刀单掷 5 位置 通孔 DIP 开关

Switch DIP OFF ON SPST 5 Raised Slide 0.05A 24VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

艾睿:
Easily customize your printed circuit with the use of the 206-5 dual in-line package switch, designed from CTS. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -55 °C and a maximum of 85 °C. The 206-5 DIP switch has a PC pin termination style. The maximum DC voltage rating is 24 VDC. This product is 14.88 mm long, 8.49 mm tall and 9.78 mm deep. This product&s;s terminal pitch is 2.54 mm.

安富利:
Switch DIP OFF ON SPST 5 Raised Slide 0.05A 24VDC PC Pins 2.54mm Thru-Hole Tube

富昌:
206 系列 多功能 单刀单掷 5 位置 通孔 DIP 开关

Chip1Stop:
Switch DIP OFF ON SPST 5 Raised Slide 0.05A 24VDC PC Pins 2.54mm Thru-Hole Tube

Verical:
Switch DIP OFF ON SPST 5 Raised Slide 0.05A 24VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Online Components:
Switch DIP OFF ON SPST 5 Raised Slide 0.05A 24VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP OFF ON SPST 5 Raised Slide 0.05A 24VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube
