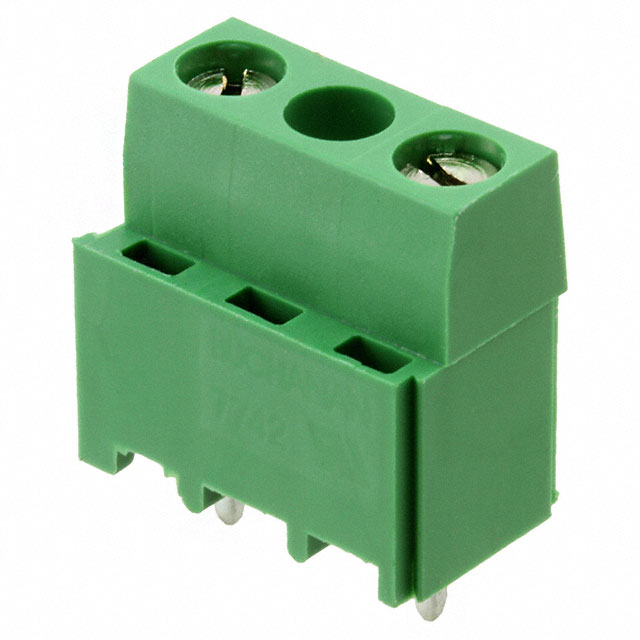

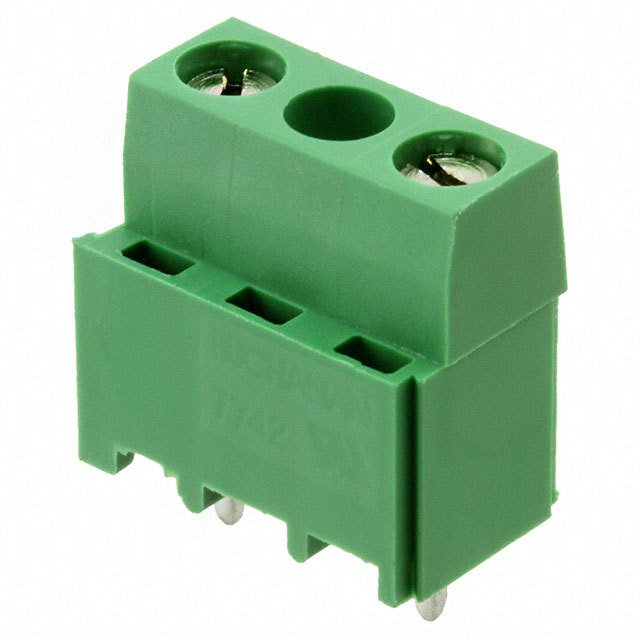

Conn Terminal Block 2POS 10mm Solder ST Thru-Hole 17.5A/Contact
Easily mend a cutoff point in a circuit by using this eurostyle block PCB terminal block from . It has a maximum voltage rating of 600 VAC. It has a straight body orientation. This is a 1-row connector. Its pitch is 10 mm. This device has a maximum current rating of 17.5 A/contact. 282842-2 is housed in polyamide 6/6. It uses the solder termination method. This product is 15.5 mm long, 15.2 mm tall and 9 mm deep.
触点数 2
线规 12AWG ~ 30AWG
触点电镀 Tin
排数 1
电路数 2
易燃性等级 UL 94 V-0
针脚数 2
额定电流Max 17.5A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 600 VAC
工作电压Max 600 VAC
安装方式 Through Hole
高度 15.2 mm
外壳颜色 Green
颜色 Green
触点材质 Brass
外壳材质 Nylon 6/6
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
